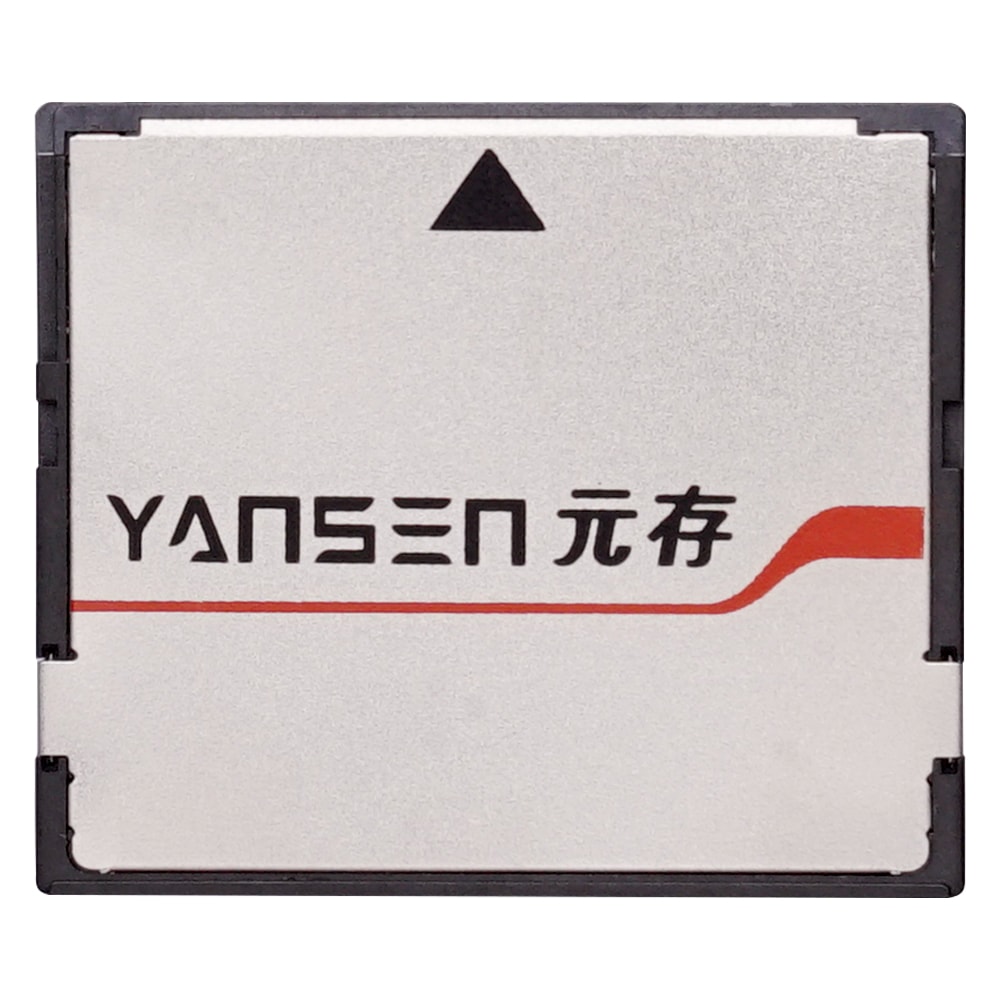

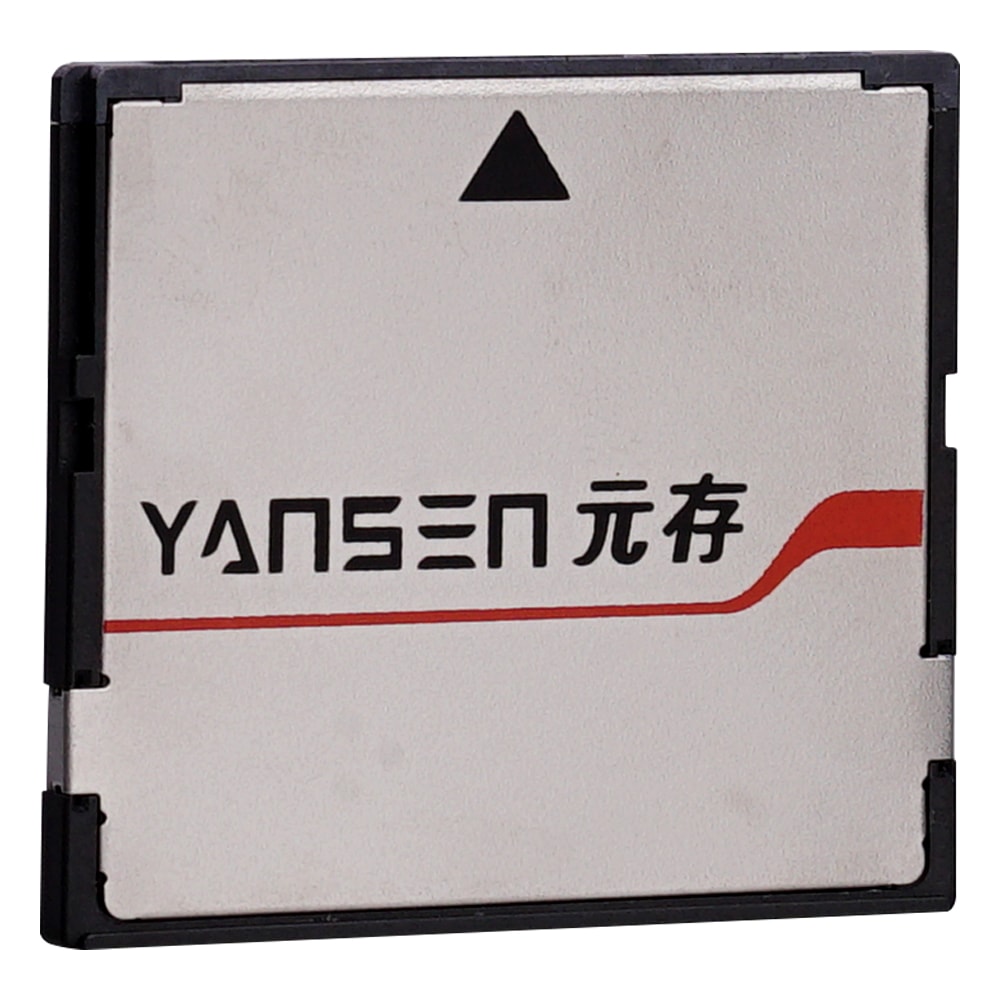

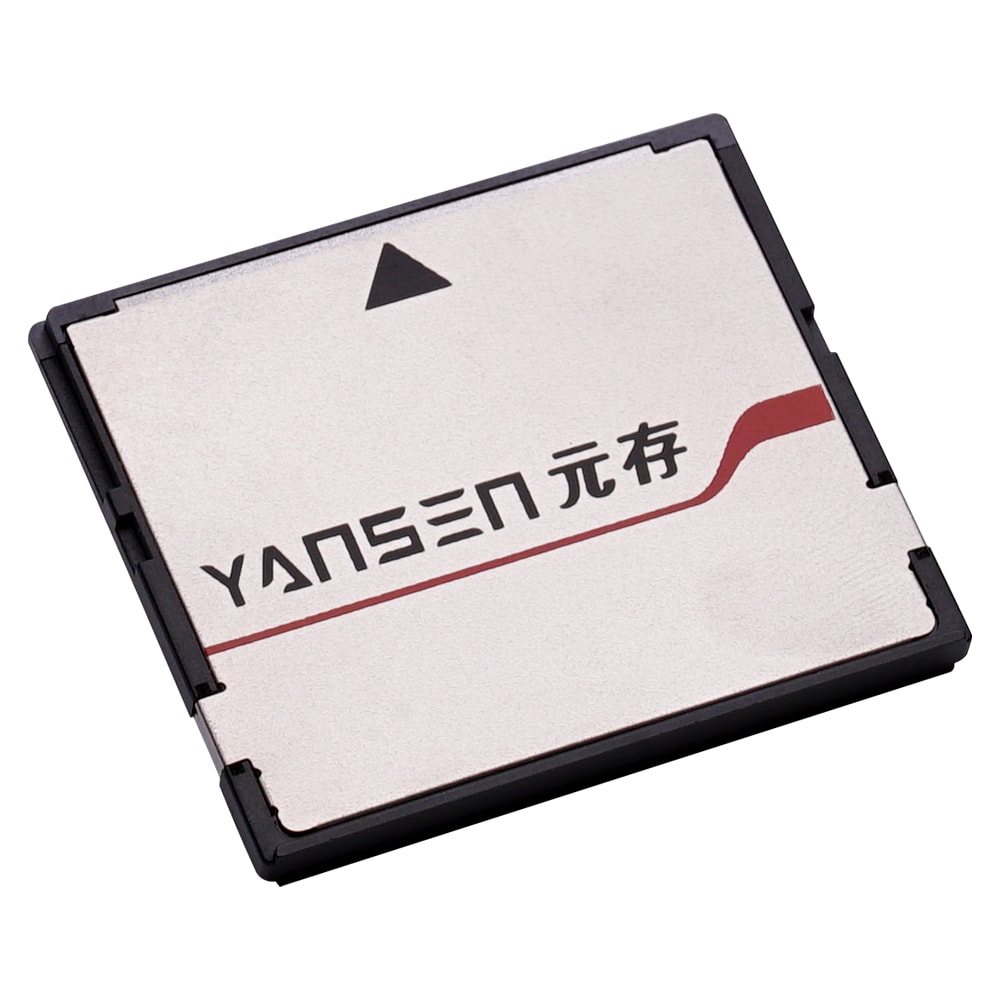

CFast (YSCS)
CFast (YSCS)
CFast (YSCS)
CFast (YSCS)
CFast (YSCS)
CFast (YSCS)

Overview

Yansen CFast YSCS-X-XXX, featured as small form factor, can be configured as a boot device or data storage and is suitable for most industrial application. With MLC/SLC NAND Flash and LDPC ECC, provide high performance and prolong lifespan with exceptional reliability. Supported with hardware write protection, can prevent valuable data on a device from modification and deletion.


Features


  • Interface:SATA3.0(6Gb/s)

  • Low-Density Parity-Check (LDPC) Code

  • Global Wear Leveling

  • Flash bad-block management

  • Flash Translation Layer: Page Mapping

  • Support S.M.A.R.T.

  • Support TRIM

Specifications

Flash Type MLC/TLC
Capacity    8GB~512GB
Sequential Read Up to 500MB/s
Sequential Write Up to 300MB/s
4K Random Read 18500 IOPS
4K Random Write19100 IOPS
Operating Temperature  -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration80Hz~2000Hz/20G
Operating Voltage DC 3.3V±5%
Power Consumption(MAX)1.5W
Dimensions L42.8mm*W36.4mm*H3.3mm ±0.15mm
MTBF2 million hours


Order Information


ModelTemperature8GB16GB32GB-

YSCS-S-XXX


-20°C ~ 75°C


YSCS-S-008

(Enhance Series)

YSCS-S-016

(Enhance Series)

YSCS-S-032

(Enhance Series)

-

YSCS-S-XXX


-40°C ~ 85°C


YSCS-S-008

(Extreme Series)

YSCS-S-016

(Extreme Series)

YSCS-S-032

(Extreme Series)

-
ModelTemperature64GB128GB256GB512GB

YSCS-M-XXX


-20°C ~ 75°C


YSCS-M-064

(Enhance Series)

YSCS-M-128

(Enhance Series)

YSCS-M-256

(Enhance Series)

YSCS-M-512

(Enhance Series)

YSCS-M-XXX


-40°C ~ 85°C


YSCS-M-064

(Extreme Series)

YSCS-M-128

(Extreme Series)

YSCS-M-256

(Extreme Series)

YSCS-M-512

(Extreme Series)

Application

Embedded

Embedded

AIoT

AIOT

Camera-Specific

Camera-Specific
