Overview

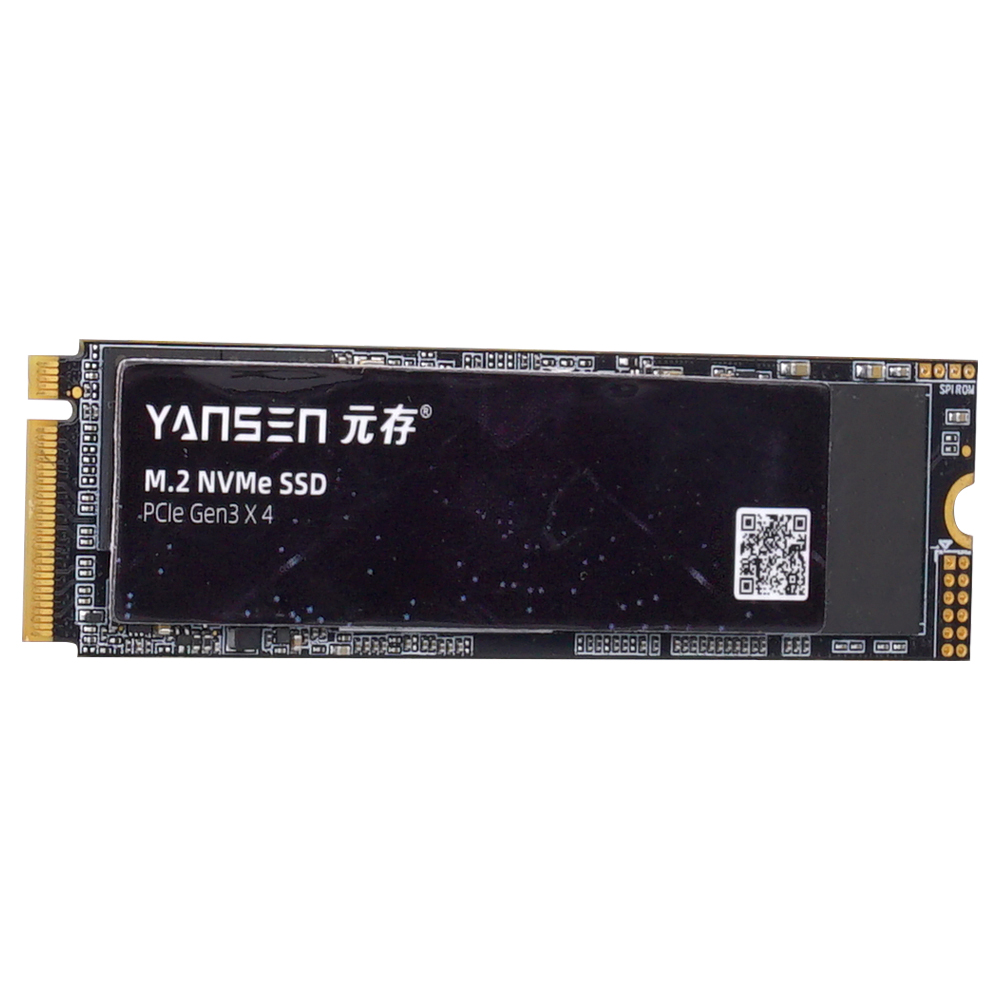

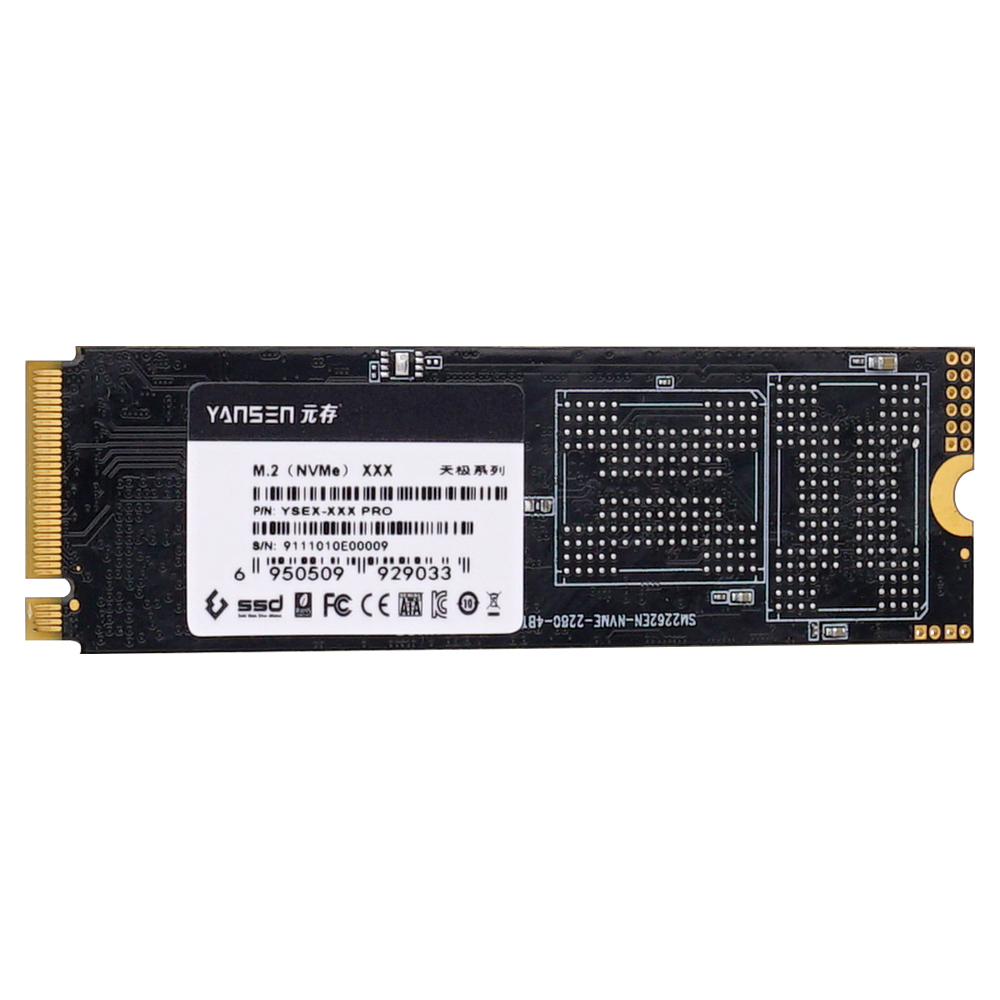

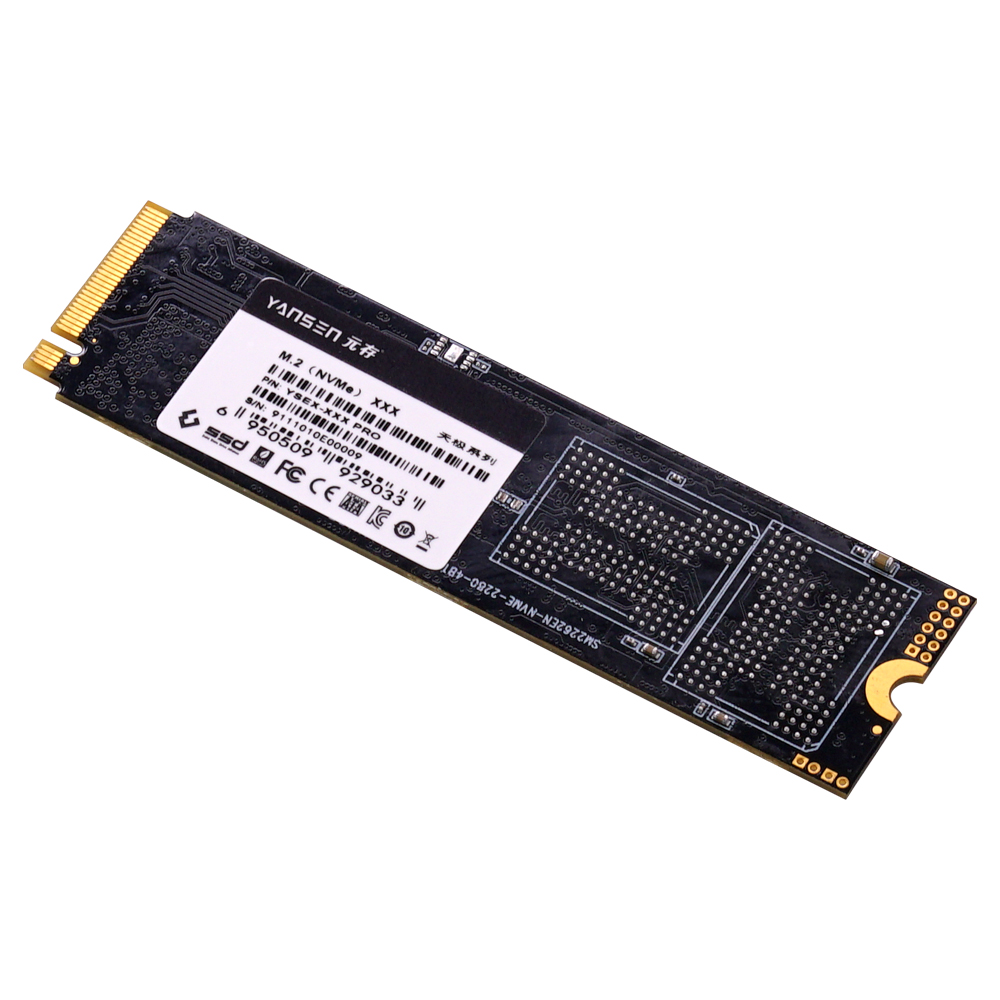

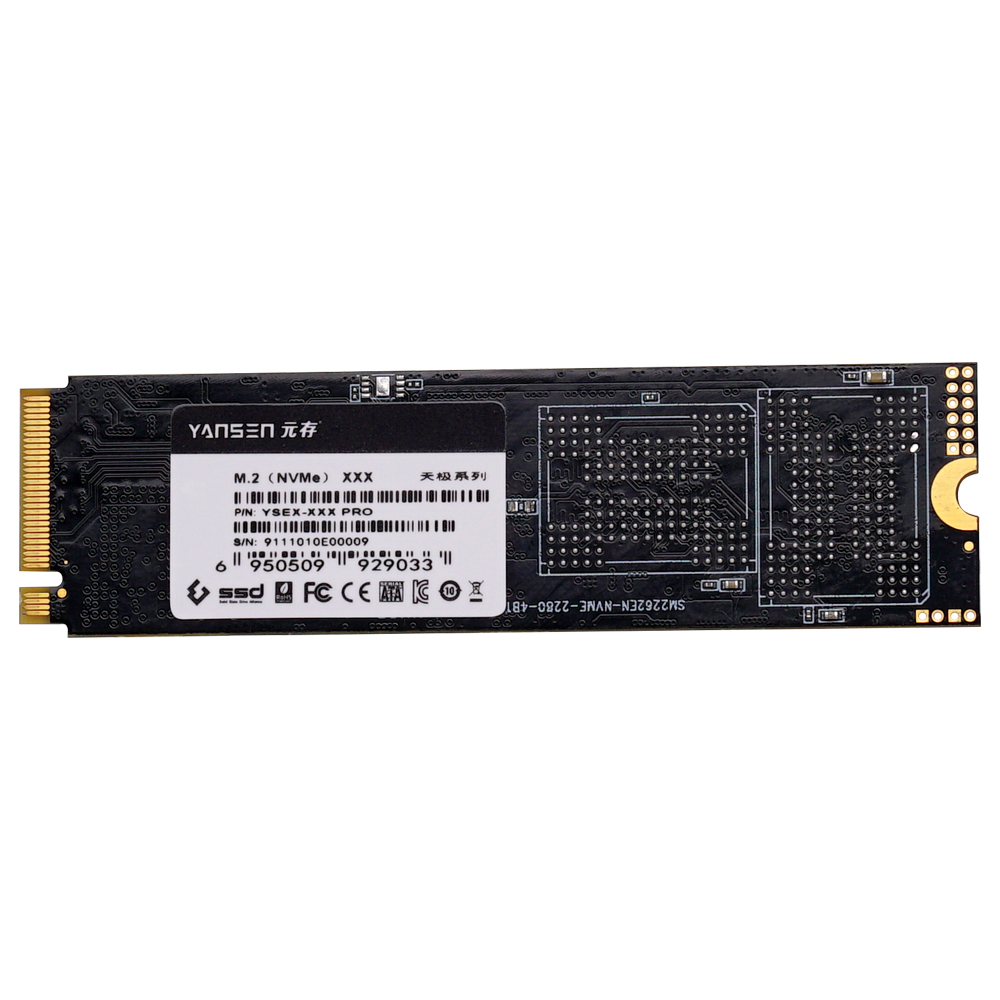

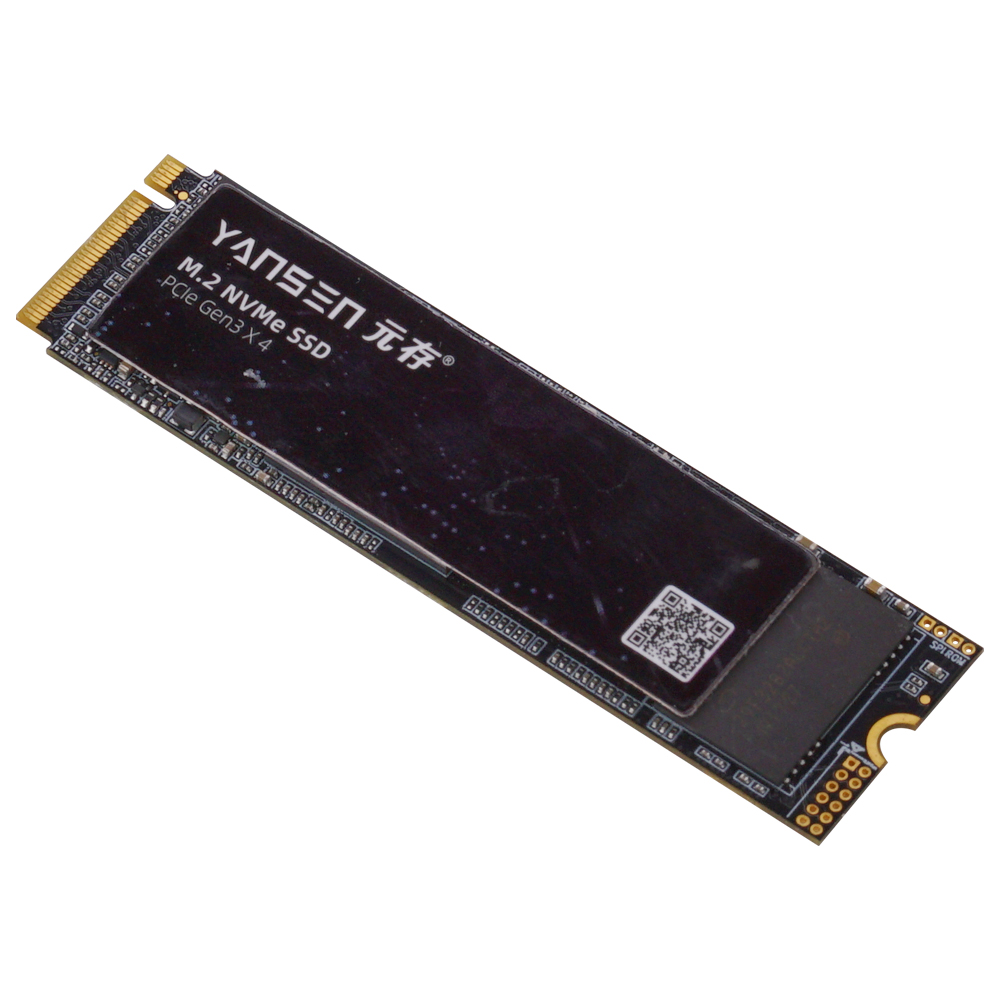

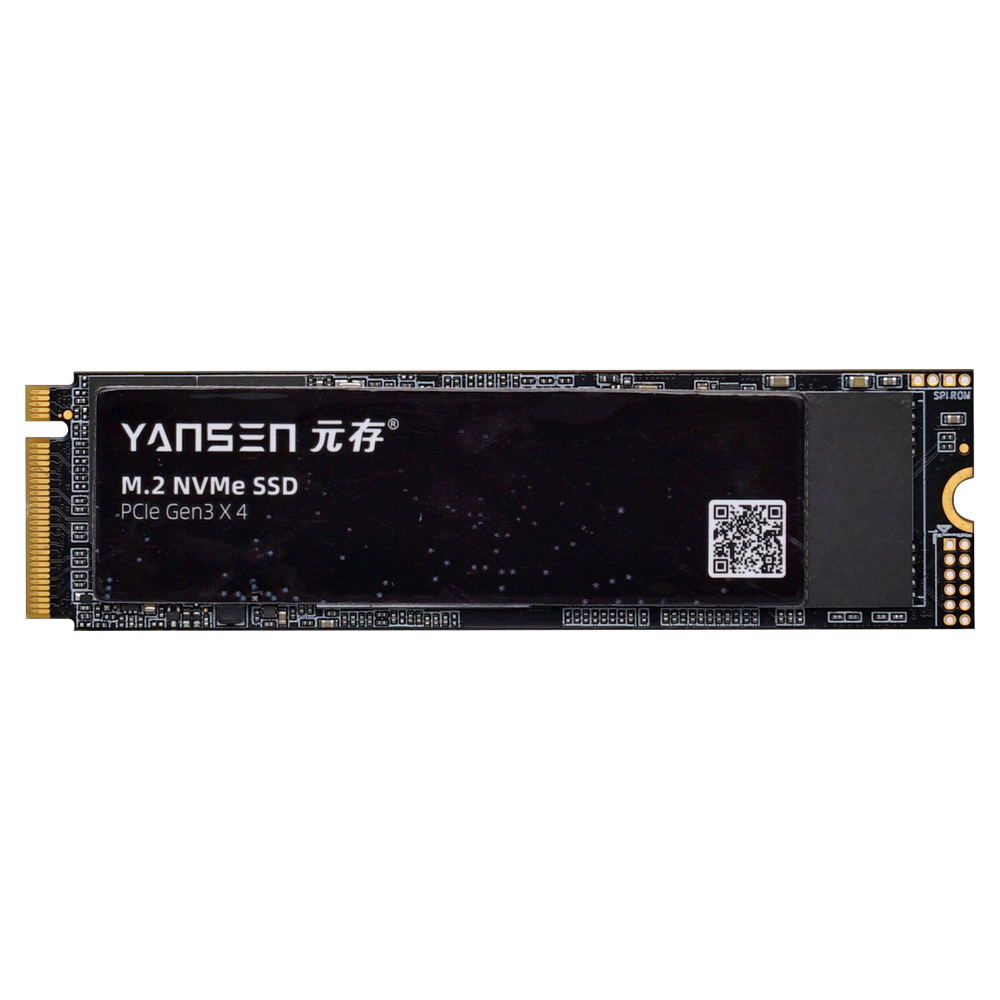

Yansen YSEX-XXX PRO is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash, capacity range is 256GB~2TB YSEX-XXX PRO supports PCIe Gen III x4, and it is compliant with NVMe 1.3 providing excellent performance. YSEX-XXX PRO with heat-spreading design dissipate heat generating from IC making SSD perform more stably. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-end Data Path Protection that secures the data transmission between host system and NAND Flash.

Yansen YSEX-XXX PRO provides ultra-speed and high IOPS and offers maximum capacity up to 2TB, making the SSD optimal for server and heavy data workload applications.


Features


  • Interface:M.2 2280,PCIe Gen3 x 4

  •  Low-Density Parity-Check (LDPC) Code

  • Global Wear Leveling

  • Flash bad-block management

  • Flash Translation Layer: Page Mapping

  • Support S.M.A.R.T.

  • Support TRIM

Specifications

Product ModelYSEX-XXX PRO
Flash Type TLC
Capacity    256GB~2TB
Sequential Read Up to 3600MB/s
Sequential Write Up to 3400MB/s
4K Random Read 186200 IOPS
4K Random Write186100 IOPS
Operating Temperature 0°C ~ +70°C
Storage Temperature -20°C ~ +75°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration80Hz~2000Hz/20G
Operating Voltage DC 3.3V±5%
Power Consumption 8.6W
Dimensions L80.0mm*W22.0mm*H2.1mm ±0.1mm
MTBF2 million hours




Order Information

Temperature256GB512GB1TB2TB
0°C ~ 70°CYSEX-256 PROYSEX-512 PROYSEX-1T PROYSEX-2T PRO
