Overview

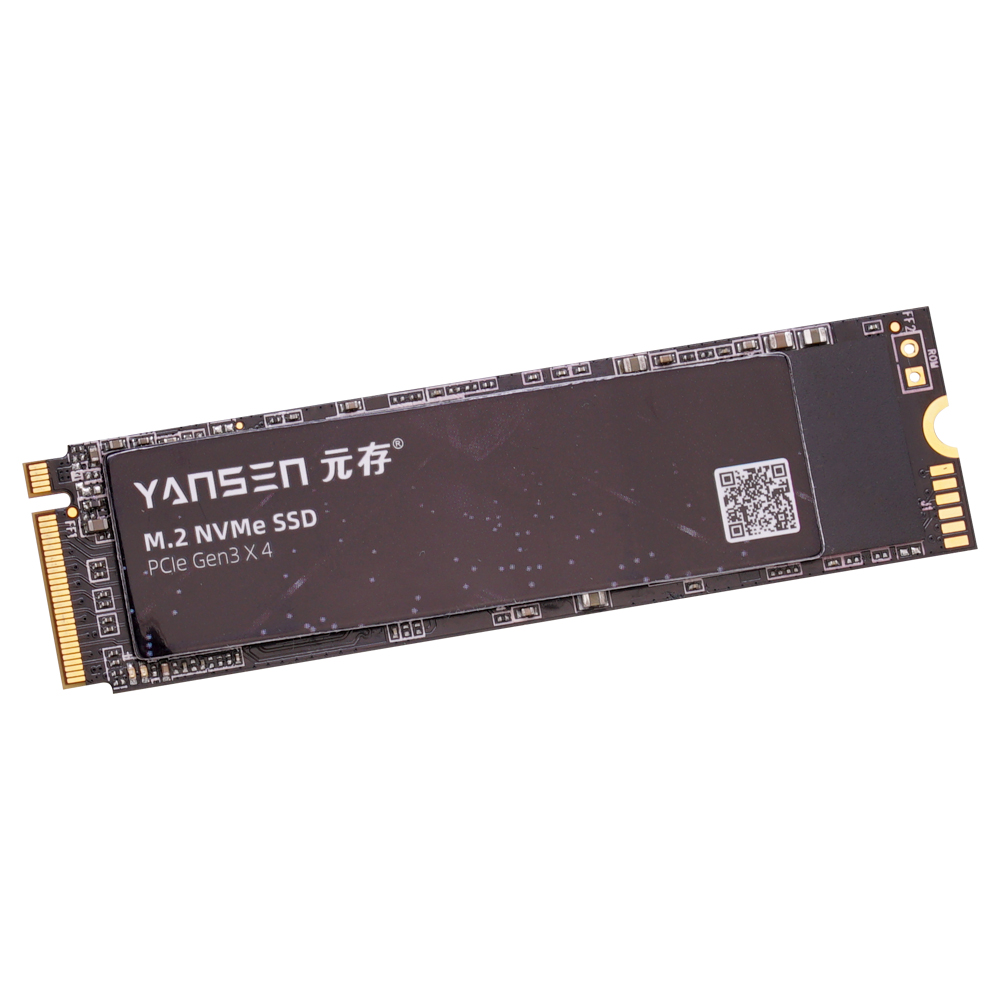

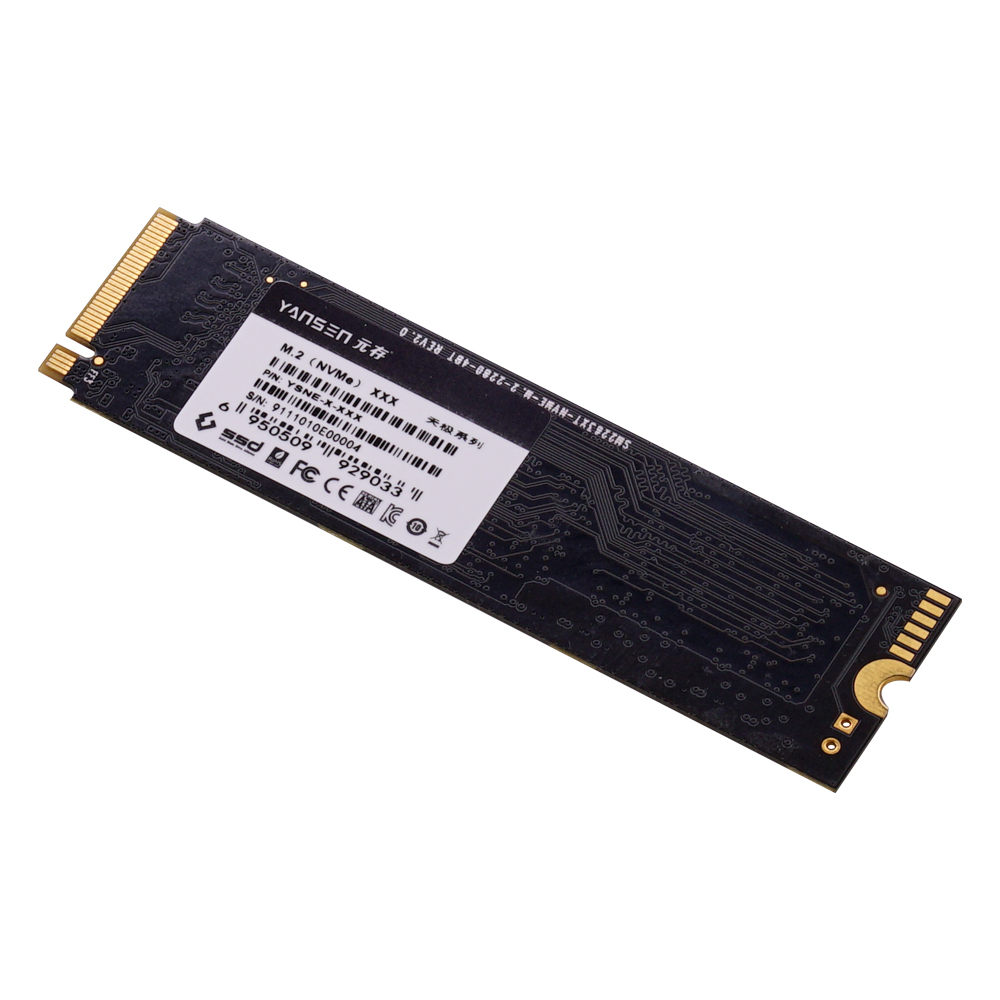

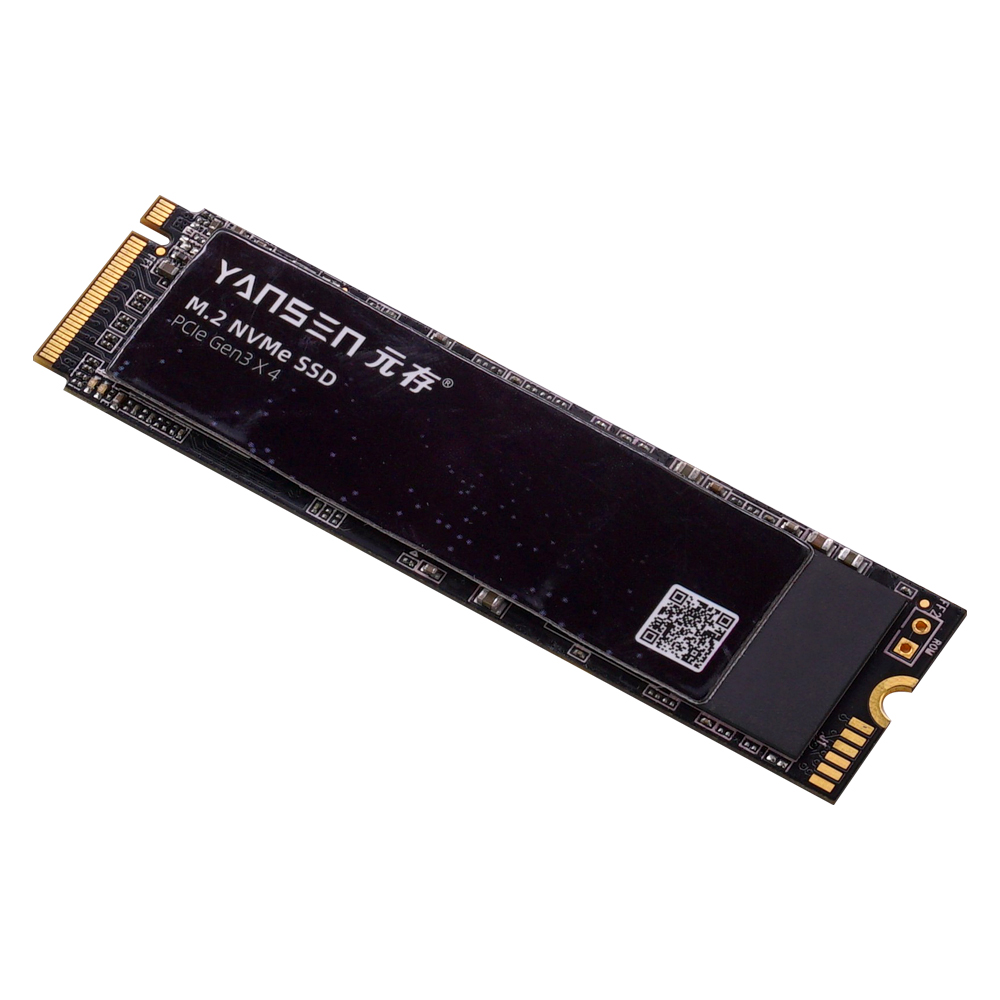

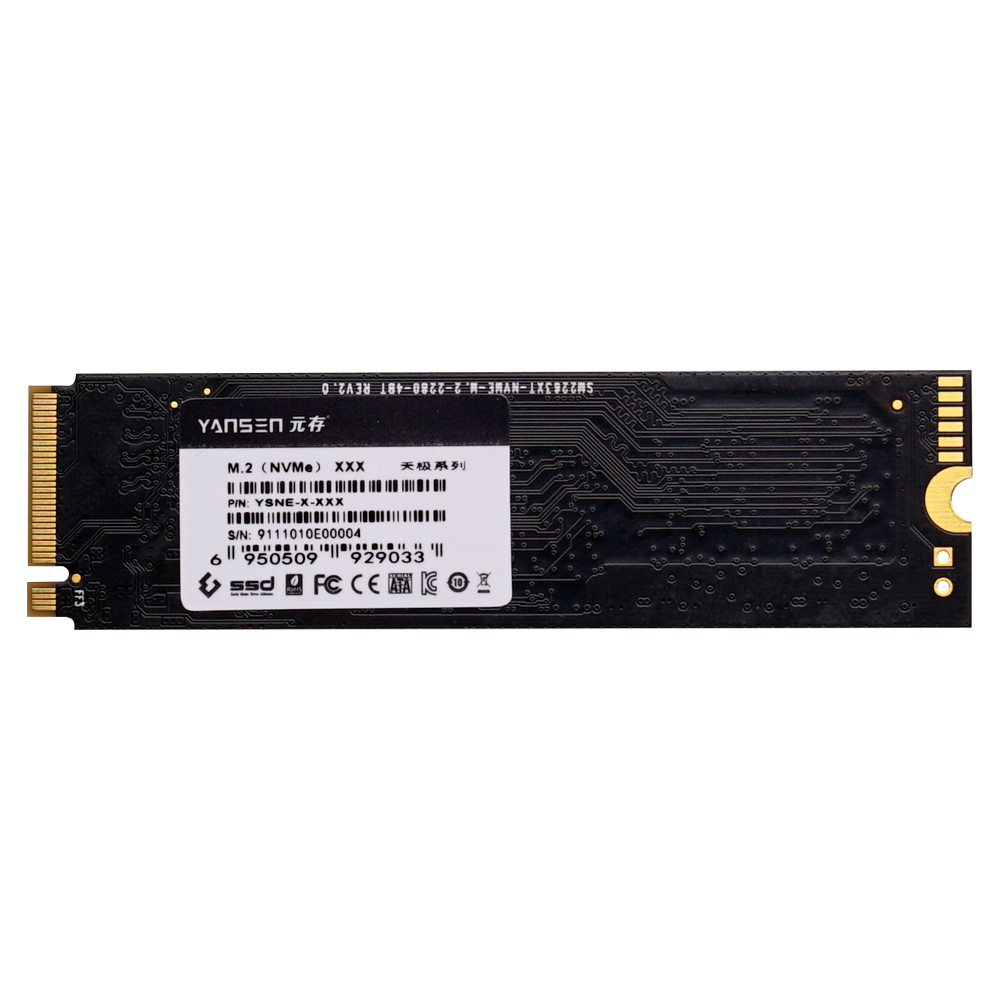

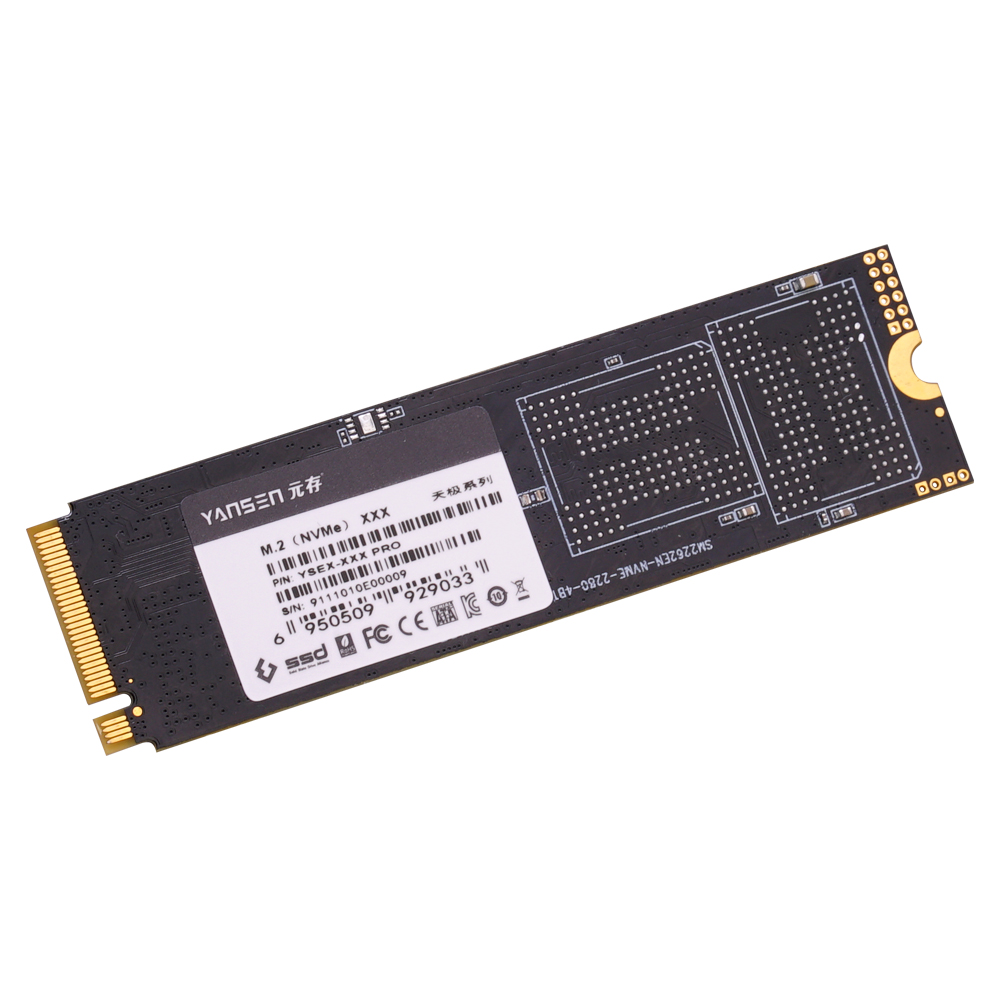

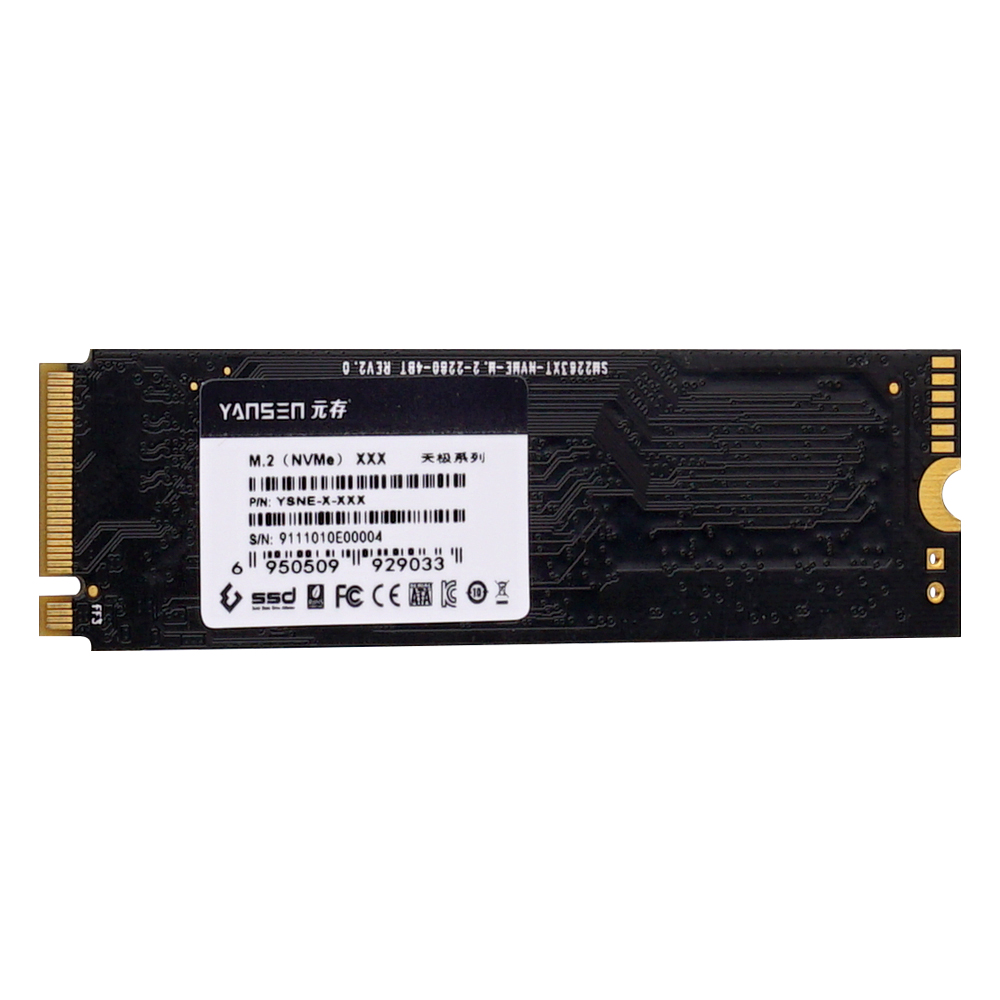

Yansen YSNE-X-XXX is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash, capacity range is 128GB~1TB. YSNE-X-XXX supports PCIe Gen III x4, and it is compliant with NVMe 1.3 providing excellent performance. YSNE-X-XXX with heat-spreading design dissipate heat generating from IC making SSD perform more stably. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-end Data Path Protection that secures the data transmission between host system and NAND Flash.
Features
Interface：PCIe Gen3 x 4Lane
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Specifications
| Product Model | YSNE-X-XXX |
| Flash Type | MLC/TLC |
| Capacity | 128GB~1TB |
| Sequential Read | Up to 2000MB/s |
| Sequential Write | Up to 1500MB/s |
| 4K Random Read | 100200 IOPS |
| 4K Random Write | 14500 IOPS |
| Operating Temperature | -20°C ~ 70°C, -40°C ~ 85°C |
| Storage Temperature | -55°C ~ +95°C |
| Humidity | 5%-95% RH non-condensing |
| Shock | 1500G/0.5ms |
| Vibration | 80Hz~2000Hz/20G |
| Operating Voltage | DC 3.3V±5% |
| Power Consumption（MAX） | 3.0W |
| Dimensions | L80.0mm*W22.0mm*H2.1mm ±0.15mm |
| MTBF | 2 million hours |
Order Information
| Model | Temperature | 128GB | 256GB | 512GB | 1TB |
YSNE-T-XXX | -20°C ~ 75°C | YSNE-T-128 (Enhance Series) | YSNE-T-256 (Enhance Series) | YSNE-T-512 (Enhance Series) | YSNE-T-1T (Enhance Series) |
YSNE-T-XXX | -40°C ~ 85°C | YSNE-T-128 （Extreme Series） | YSNE-T-256 （Extreme Series） | YSNE-T-512 （Extreme Series） | YSNE-T-1T （Extreme Series） |
Application
Embedded
Lottery
Retail
AIOT
