Overview

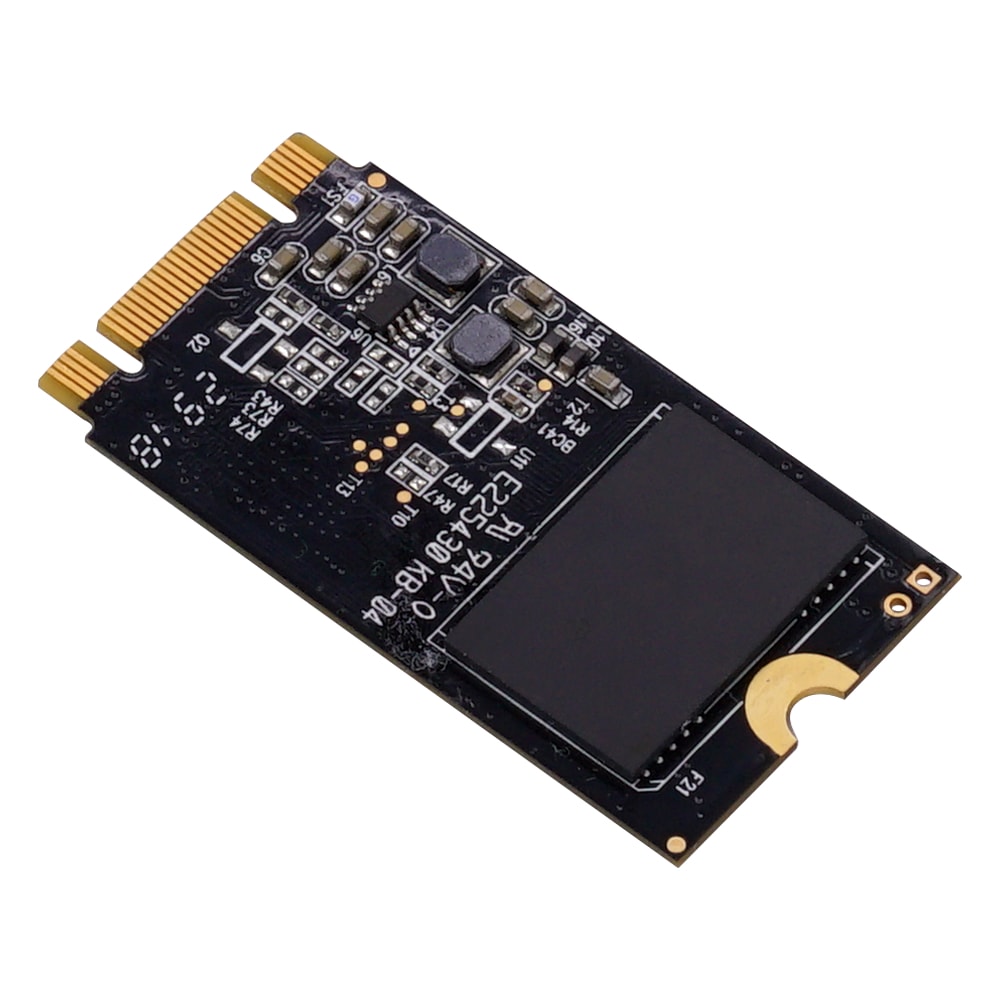

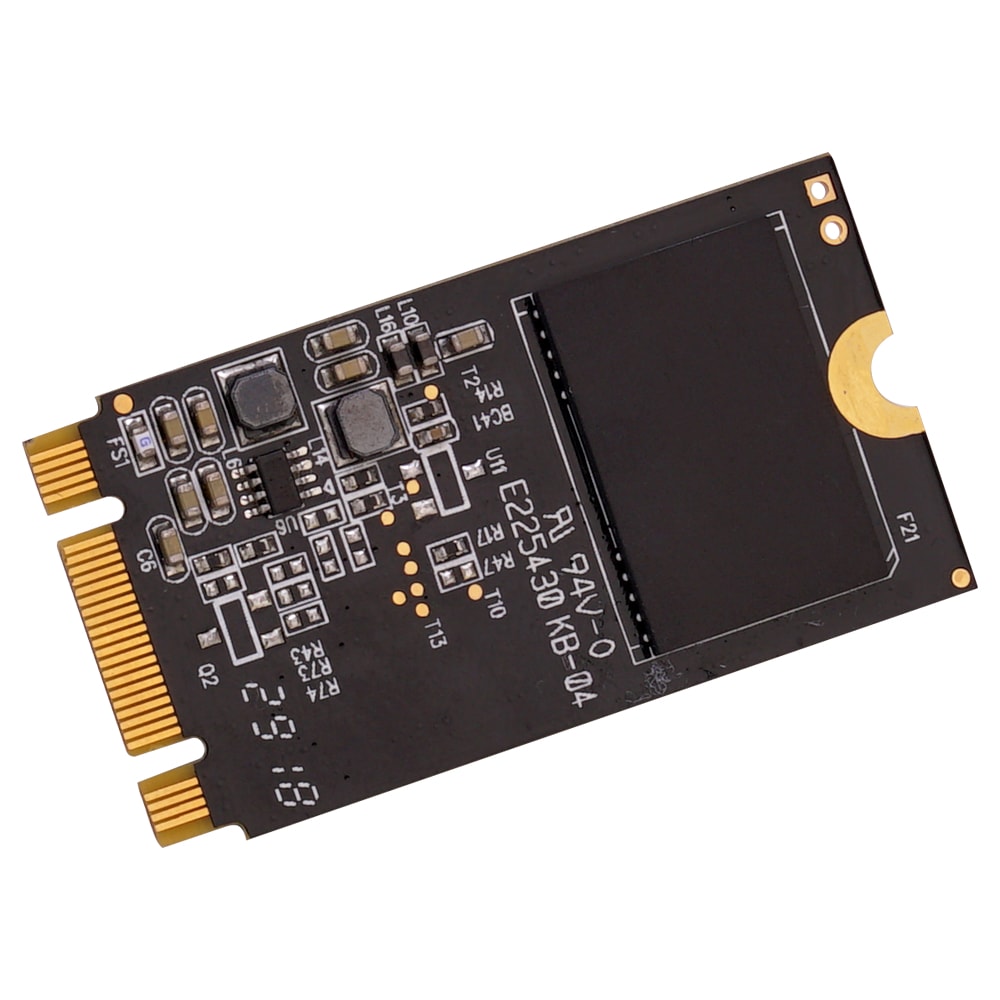

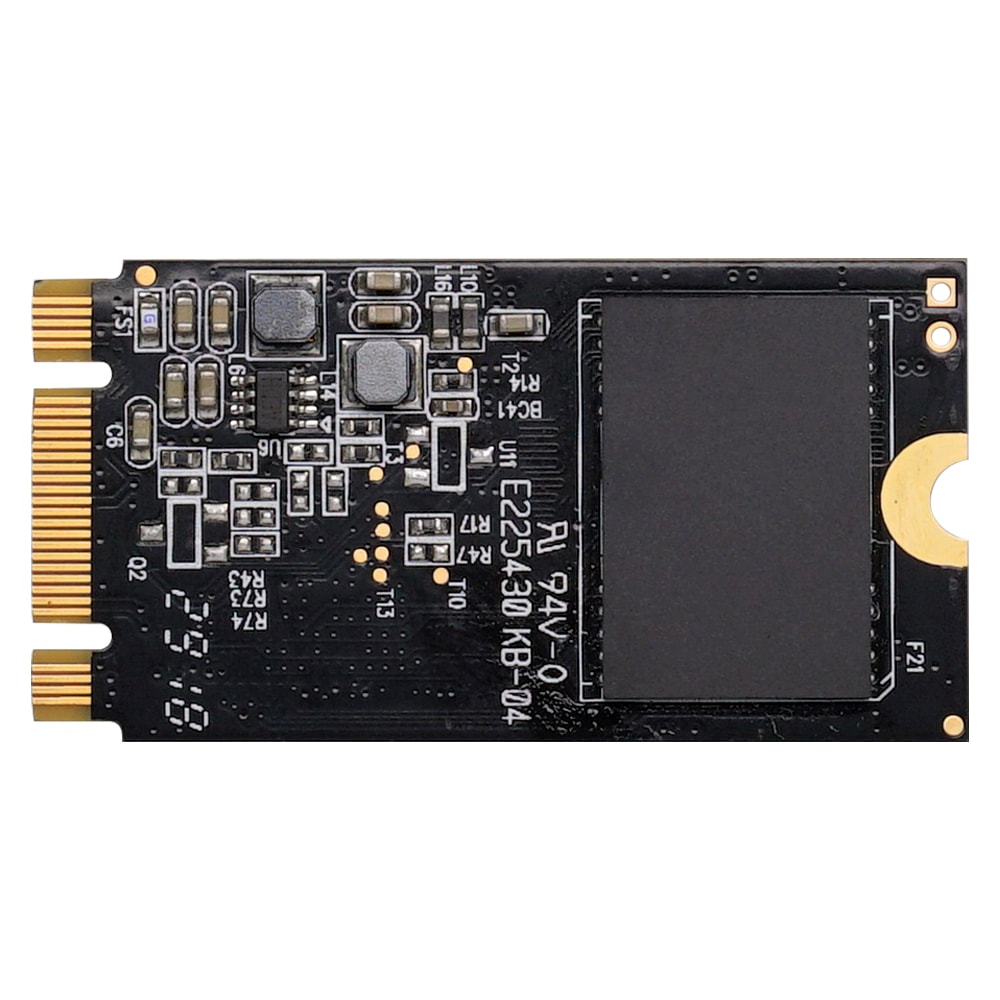

Yansen YSN600T-X-XXX is a well-balanced M.2 SATA SSD with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
YSN600T-X-XXX utilizes 2D NAND and capacity range is 8GB~256GB, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM.
Features
Interface：SATA3.0(6Gb/s)
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loose Protection PLP
Specifications
| Product Model | YSN600T-X-XXX |
| Flash Type | MLC |
| Capacity | 8GB~256GB |
| Sequential Read | Up to 500MB/s |
| Sequential Write | Up to 250MB/s |
| 4K Random Read | 21100 IOPS |
| 4K Random Write | 21300IOPS |
| Operating Temperature | -20°C ~ 70°C, -40°C ~ 85°C |
| Storage Temperature | -55°C ~ +95°C |
| Humidity | 5%-95% RH non-condensing |
| Shock | 1500G/0.5ms |
| Vibration | 80Hz~2000Hz/20G |
| Operating Voltage | DC 3.3V±5% |
| Power Consumption（MAX） | 2.15W |
| Dimensions | L42.0mm*W22.0mm*H3.5mm ±0.15mm |
| MTBF | 2 million hours |
Order Information
| Model | Temperature | 8GB | 16GB | 32GB |
YSN600T-S-XXX | -20°C ~ 75°C | YSN600T-S-008 (Enhance Series) | YSN600T-S-016 (Enhance Series) | YSN600T-S-032 (Enhance Series) |
YSN600T-S-XXX | -40°C ~ 85°C | YSN600T-S-008 （Extreme Series） | YSN600T-S-016 （Extreme Series） | YSN600T-S-032 （Extreme Series） |
| Model | Temperature | 64GB | 128GB | 256GB |
YSN600T-M-XXX | -20°C ~ 75°C | YSN600T-M-064 (Enhance Series) | YSN600T-M-128 (Enhance Series) | YSN600T-M-256 (Enhance Series) |
YSN600T-M-XXX | -40°C ~ 85°C | YSN600T-M-064 （Extreme Series） | YSN600T-M-128 （Extreme Series） | YSN600T-M-256 （Extreme Series） |
Application
Embedded
Lottery
Vehicle
Automation
Retail
AIOT
Medical
