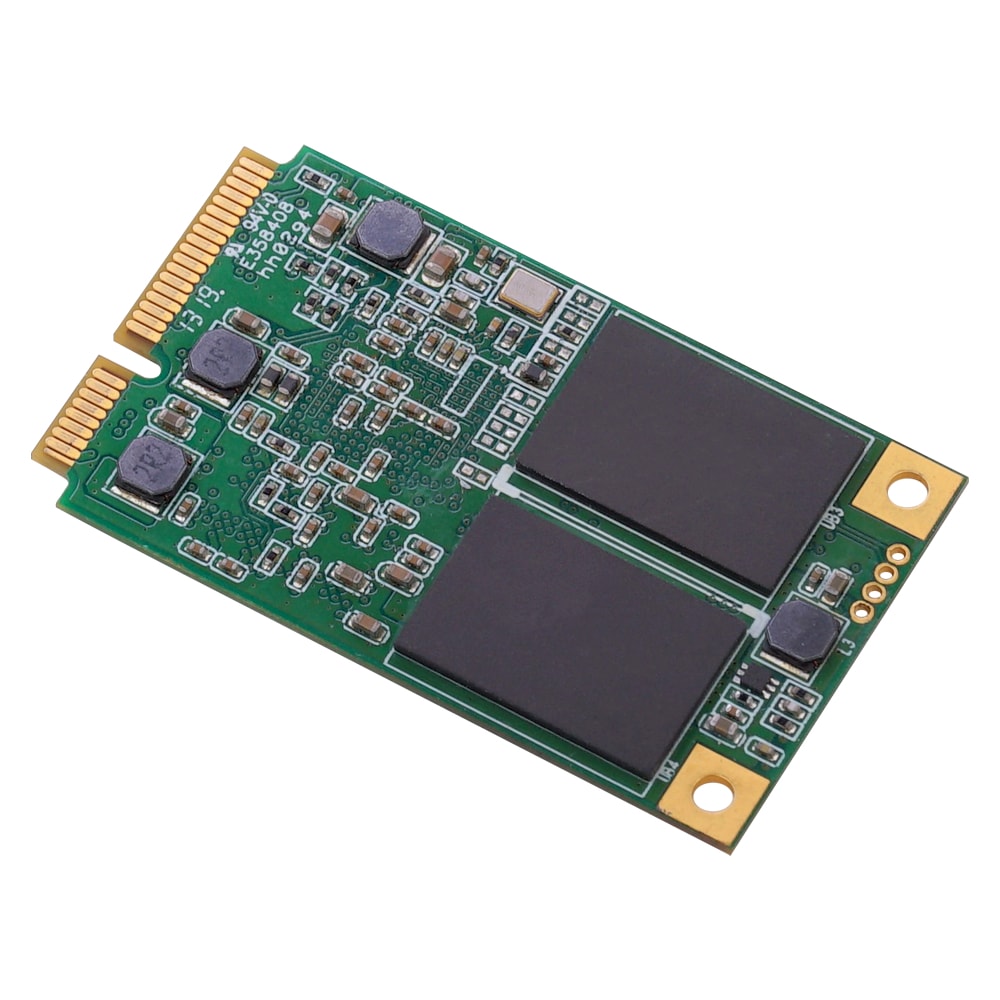

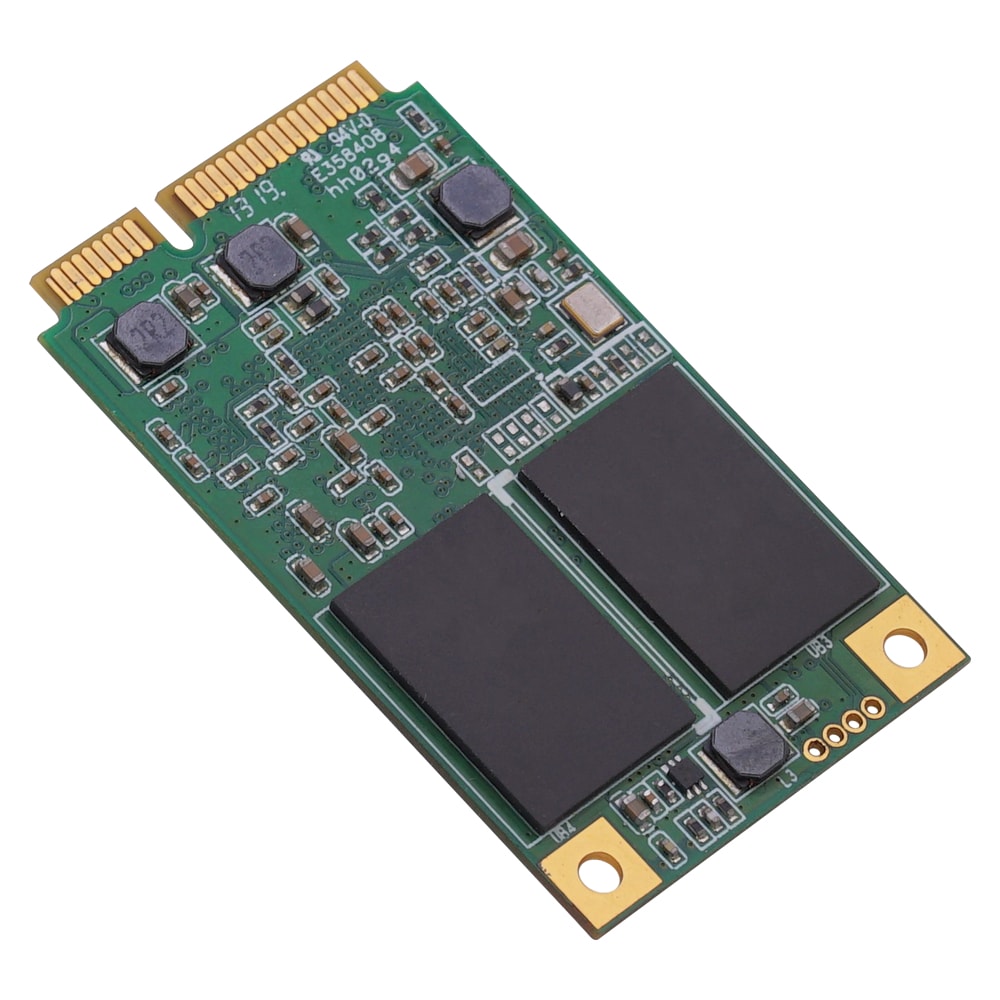

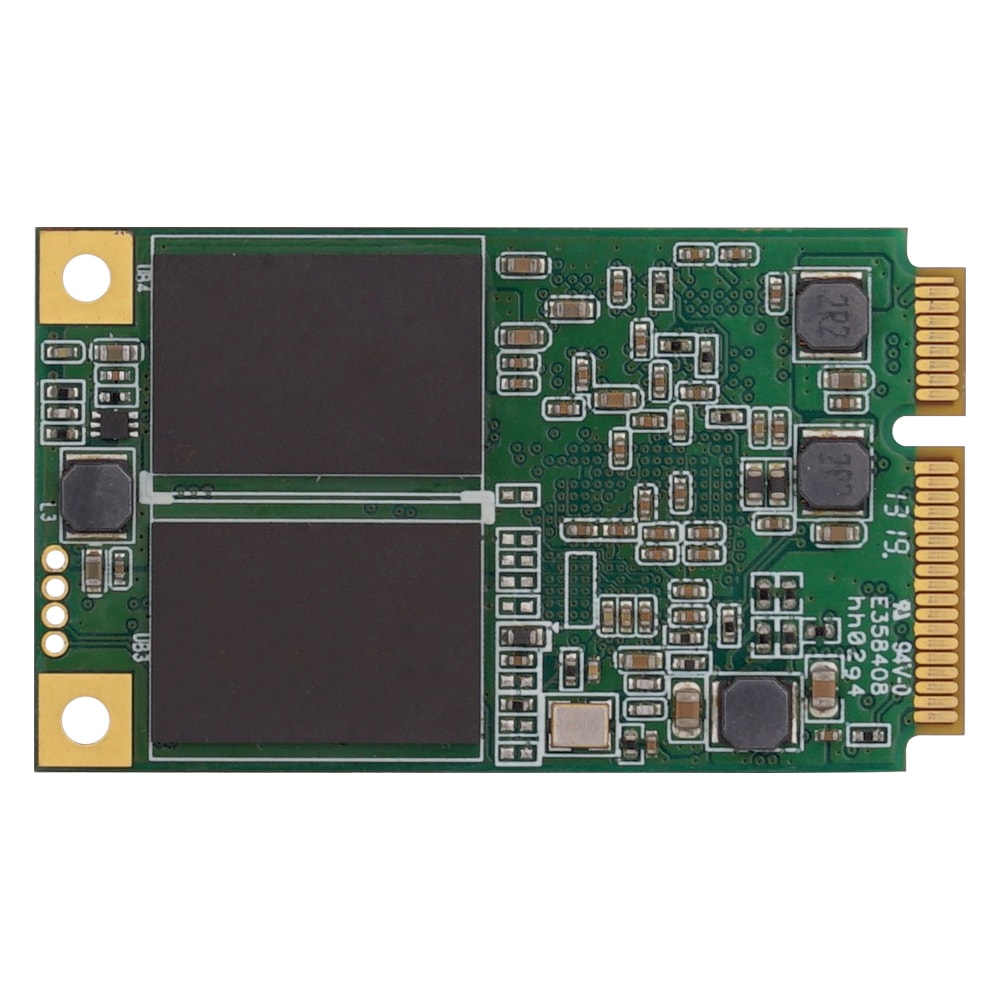

mSATA SSD (YSM600E)
mSATA SSD (YSM600E)
mSATA SSD (YSM600E)
mSATA SSD (YSM600E)
mSATA SSD (YSM600E)
mSATA SSD (YSM600E)

Overview

Yansen YSM600E-X-XXX is a well-balanced mSATA SSD with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
YSM600E-X-XXX utilizes 2D NAND and max capacity up to 1TB, external DRAM design makes the drive has great performance for 4KB files, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM.


Features


  • Interface:SATA3.0(6Gb/s)

  • Low-Density Parity-Check (LDPC) Code

  • Global Wear Leveling

  • Flash bad-block management

  • Flash Translation Layer: Page Mapping

  • Support S.M.A.R.T.

  • Support TRIM

  • Power Loose Protection PLP

Specifications

Product ModelYSM600E-X-XXX
Flash Type MLC
Capacity    128GB~1TB
Sequential Read(MAX)Up to 560MB/s
Sequential Write(MAX)Up to 480MB/s
4K Random Read 68000 IOPS
4K Random Write72900 IOPS
Operating Temperature  -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature-55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration80Hz~2000Hz/20G
Operating Voltage DC 3.3V±5%
Power Consumption(MAX)2.37W
Dimensions L50.95mm*W30.0mm*H3.5mm ±0.15mm
MTBF2 million hours



Order Information

Temperature128GB256GB512GB1TB

-20°C ~ 75°C


YSM600E-M-128
(Enhance Series)
YSM600E-M-256
(Enhance Series)
YSM600E-M-512
(Enhance Series)
YSM600E-M-1T
(Enhance Series)

-40°C ~ 85°C


YSM600E-M-128
(Extreme Series)
YSM600E-M-256
(Extreme Series)
YSM600E-M-512
(Extreme Series)
YSM600E-M-1T
(Extreme Series)

Application

Embedded

Embedded

Lottery

Lottery

Vehicle

Vehicle

automation

Automation

Retail

Retail

AIoT

AIOT

Medical

Medical
