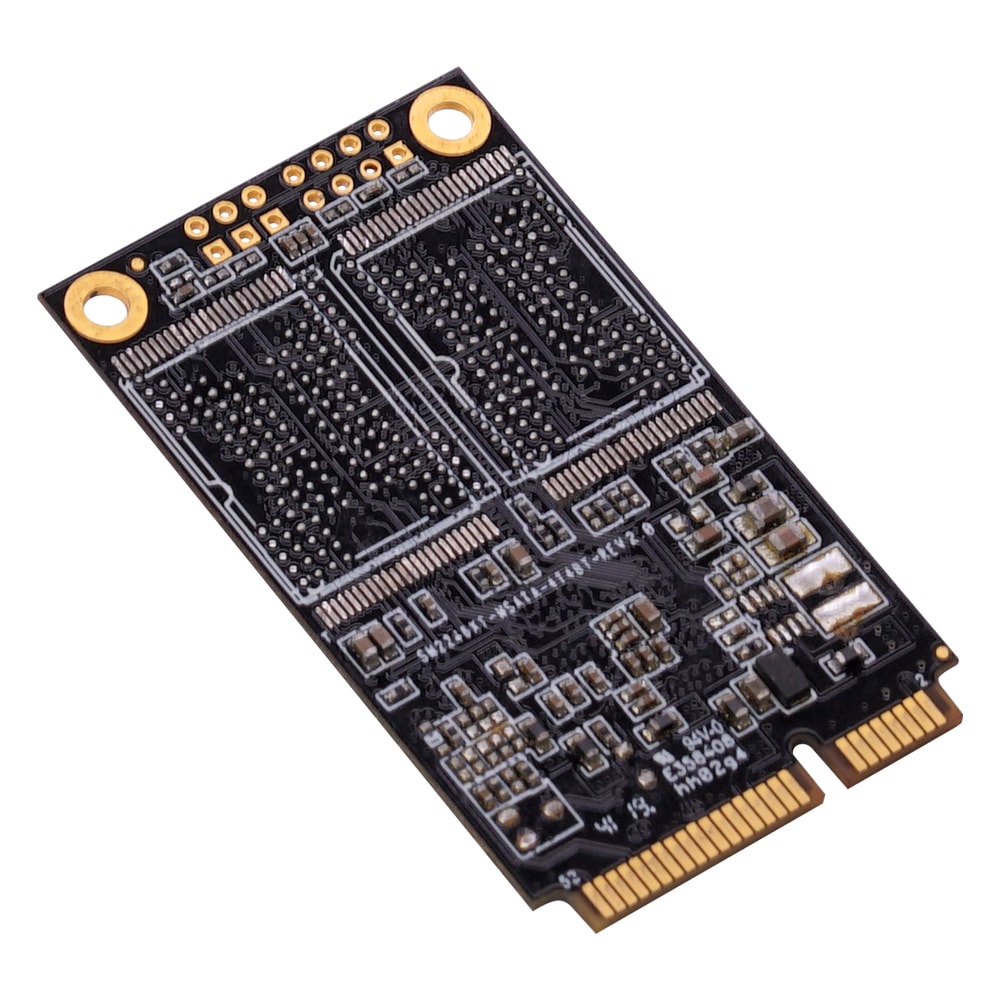

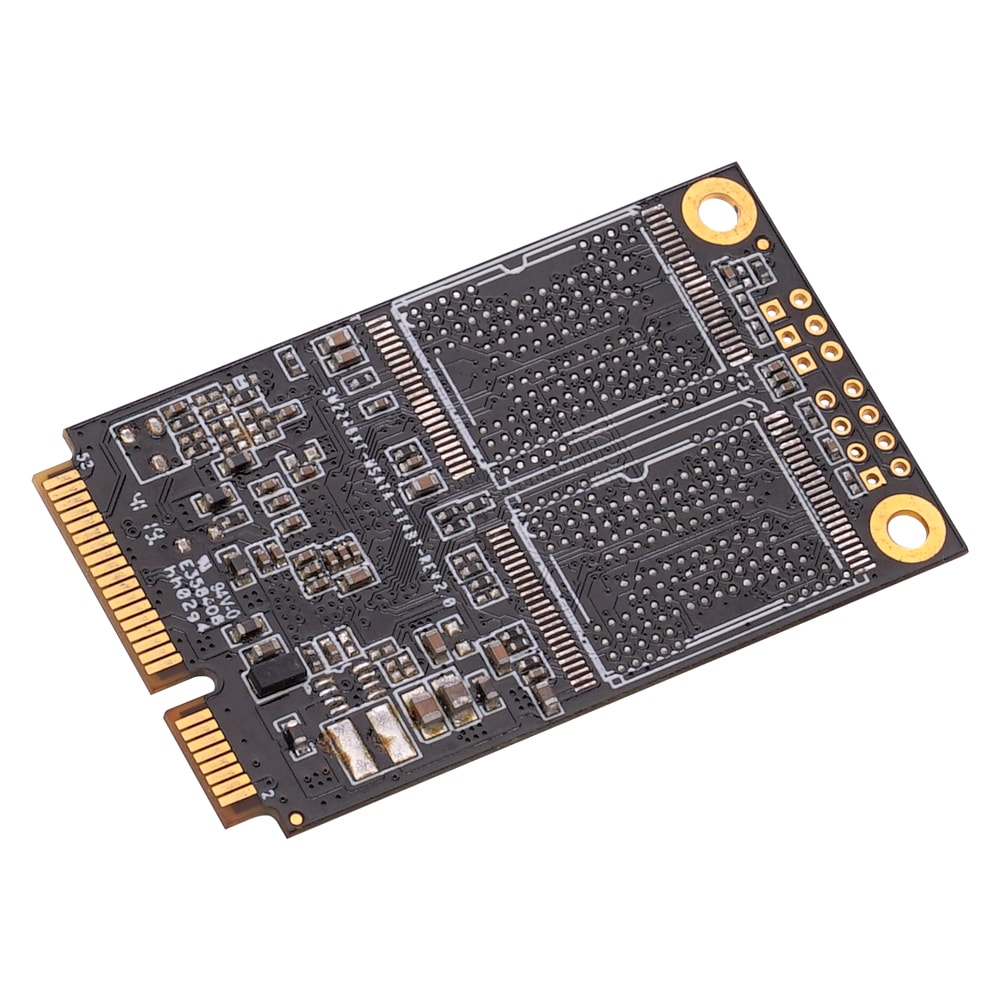

mSATA SSD (YSM600T)
mSATA SSD (YSM600T)
mSATA SSD (YSM600T)
mSATA SSD (YSM600T)

Overview

Yansen YSM600T-X-XXX is a well-balanced mSATA SSD with standard form factor and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
YSM600T-X-XXX utilizes 2D NAND and capacity range is 8GB~256GB, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM.


Features


  • Interface:SATA3.0(6Gb/s)

  • Low-Density Parity-Check (LDPC) Code

  • Global Wear Leveling

  • Flash bad-block management

  • Flash Translation Layer: Page Mapping

  • Support S.M.A.R.T.

  • Support TRIM

  • Power Loose Protection PLP

Specifications

Product ModelYSM600T-X-XXX
Flash Type MLC
Capacity    8GB~256GB
Sequential Read(MAX)Up to 500MB/s
Sequential Write(MAX)Up to 250MB/s
4K Random Read 21490 IOPS
4K Random Write21750 IOPS
Operating Temperature  -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature-55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration80Hz~2000Hz/20G
Operating Voltage DC 3.3V±5%
Power Consumption(MAX)2.01W
Dimensions L50.95mm*W30.0mm*H3.5mm ±0.15mm
MTBF2 million hours



Order Information

ModelTemperature8GB16GB32GB

YSM600T-S-XXX


-20°C ~ 75°C


YSM600T-S-008

(Enhance Series)

YSM600T-S-016

(Enhance Series)

YSM600T-S-032

(Enhance Series)

YSM600T-S-XXX


-40°C ~ 85°C


YSM600T-S-008

(Extreme Series)

YSM600T-S-016

(Extreme Series)

YSM600T-S-032

(Extreme Series)

ModelTemperature64GB128GB256GB

YSM600T-M-XXX


-20°C ~ 75°C


YSM600T-M-064

(Enhance Series)

YSM600T-M-128

(Enhance Series)

YSM600T-M-256

(Enhance Series)

YSM600T-M-XXX


-40°C ~ 85°C


YSM600T-M-064

(Extreme Series)

YSM600T-M-128

(Extreme Series)

YSM600T-M-256

(Extreme Series)

Application

industrial

Industrial/Embedded

automation

Automation
