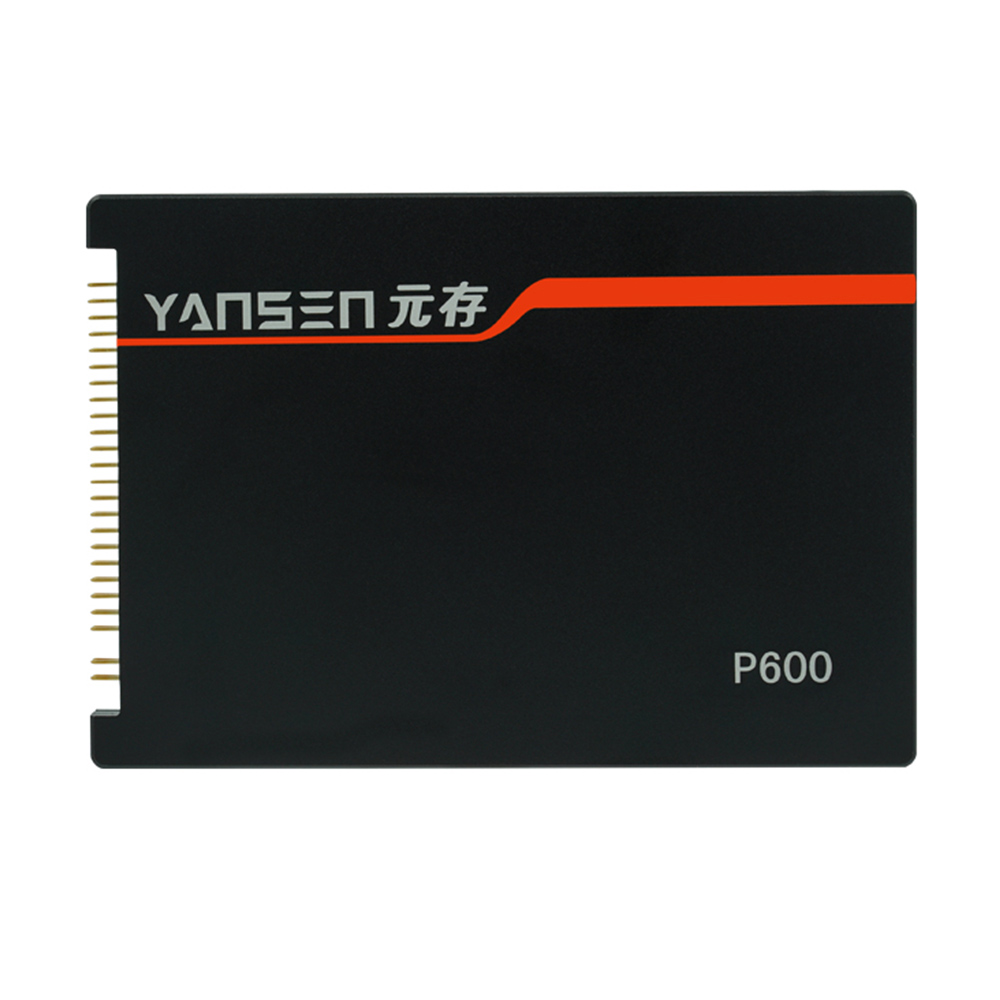

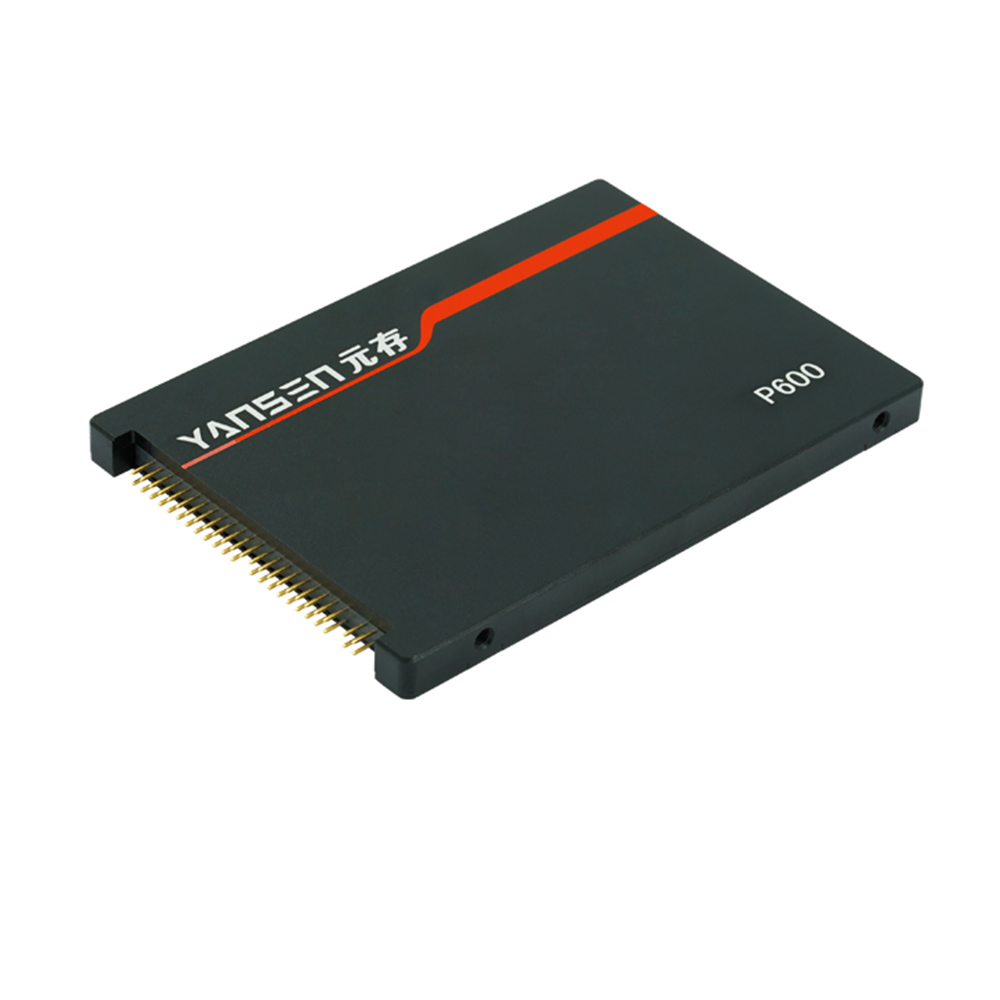

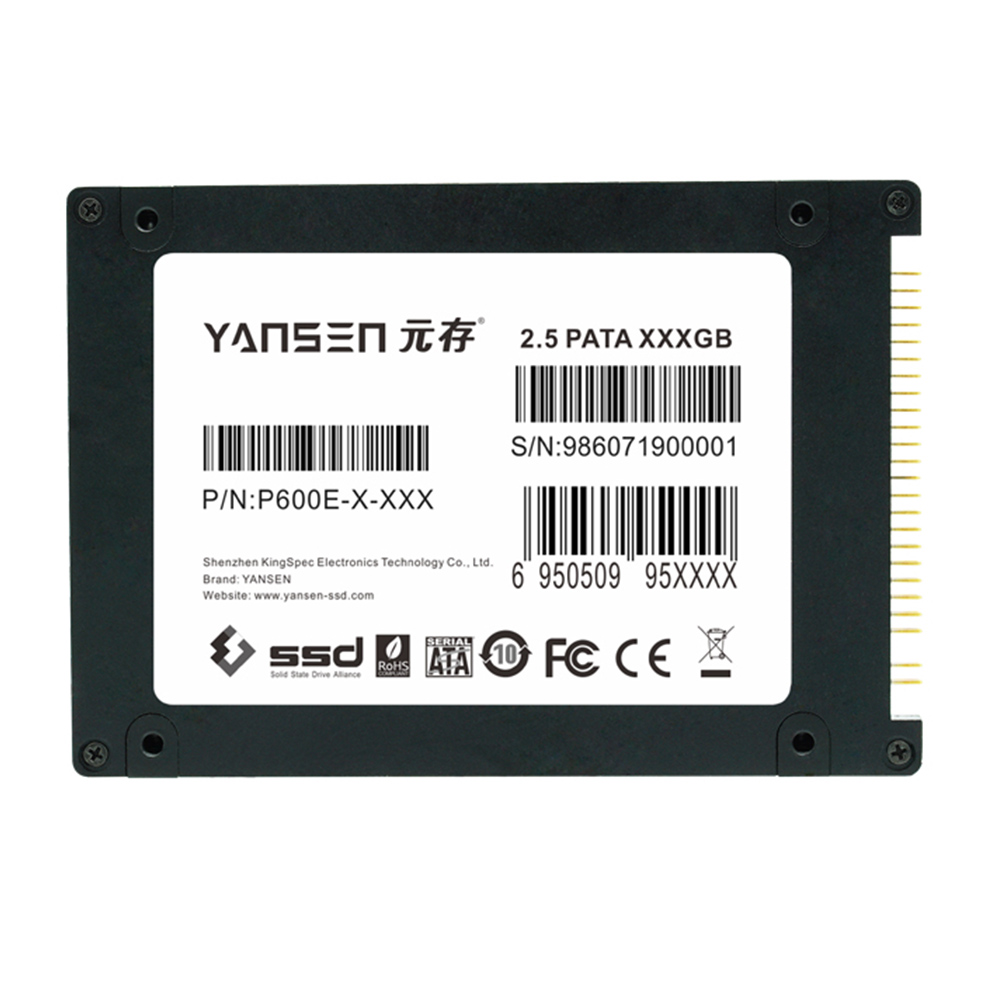

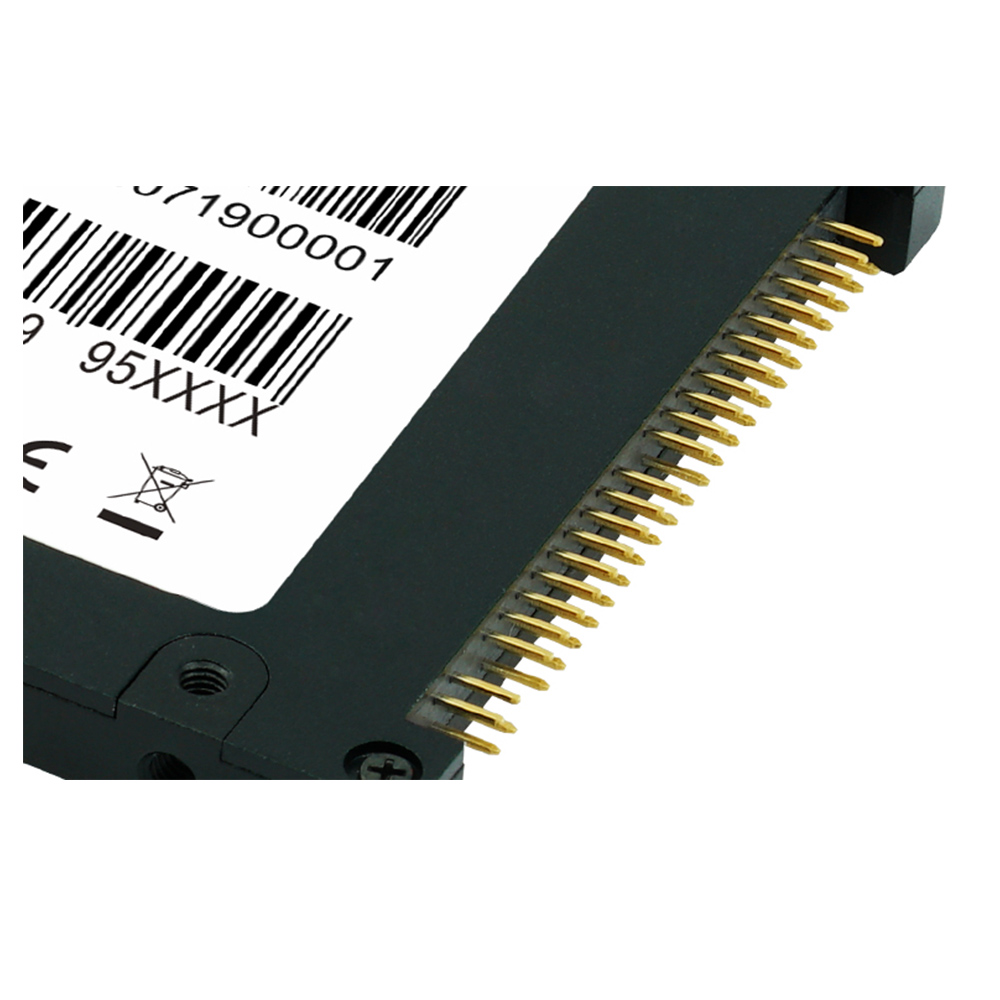

PATA P600E
PATA P600E
PATA P600E
PATA P600E
PATA P600E
PATA P600E
PATA P600E
PATA P600E

Product Description

Overview

  • Fast reading and writing speed;

  • Stable performance;

  • The maximum capacity supports 64GB;

  • Professional development of enterprise-level equipment;

  • Standard PATA (IDE) interface mode

NAND Flash:SLC / MLC


Specification

Dimension

L100×W69.8×H9.6mm

Interface

PATA

Supported Systems

Windows XP,Windows 7,Windows 8.1,Windows 2003,Windows 2008,DOS,Linux,Unix


Capacity

8GB/16GB/32GB/64GB/128GB/256GB

Reading Speed(MB/s)

120

Writing Speed(MB/s)

100

Average Access time

0.1ms


Durability

MTBF

2 million hours

ECC Support

Yes

Flash Manangement

System Automatic Bad Block Management

Vibration

20G@7~2000Hz

Shock

1500G@0.5ms

S.M.
A.R.T

Yes

Power Loose Protection(PLP)

Yes


Electrical Characteristics

Input Voltage:

DC 5V±5%

Idle Power Consumption:

0.4W

Work Power Consumption:

1.6W

Warranty:  MLC 3 years / SLC 5 years


Environmental Tolerance

Operation Temp.:

Staudard Grade (-20℃~75℃)

Industrial Grade (-40℃~85℃)

Storage Temp.:

-55℃~+105℃

Opeating Humidity:

5-95%



Test Platform

CPU

Intel® Core(TM) i5-2400 CPU @ 3.10GHz

Chipset

Intel® Z68 Express Chipset

Memory

Kingston KHX1600C9D3C1K2/4GX

OS

Windows 7 Professional 64-bit

AHCI Driver

Intel Chipset SATA AHCI Controller 10.5.1.1001

BIOS Settings

AHCI Mode

Testing Software

  • Crystal DiskMark3.03

  • AS SSD Benchmark 1.6.4237.30508

  • ATTO Disk Benchmarks V2.47

  • Iometer2008

  • HD Tune Pro5.00
