Overview

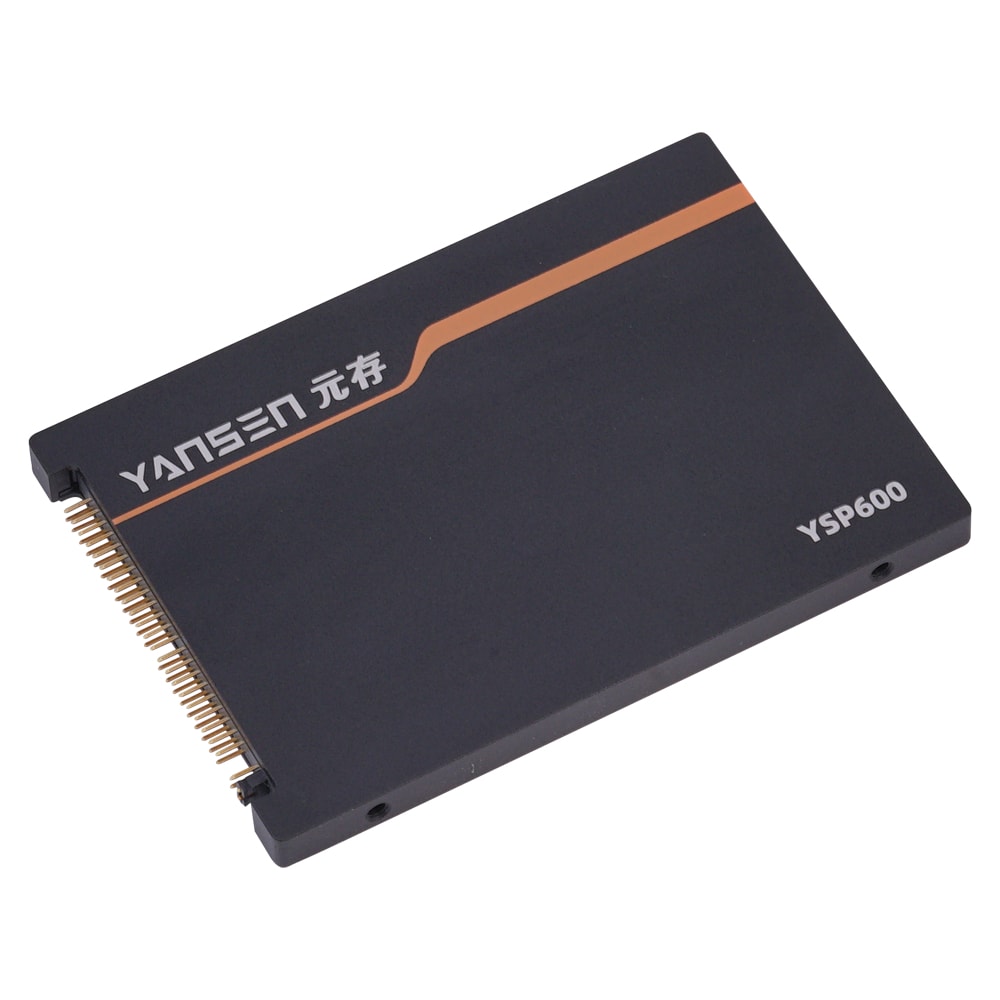

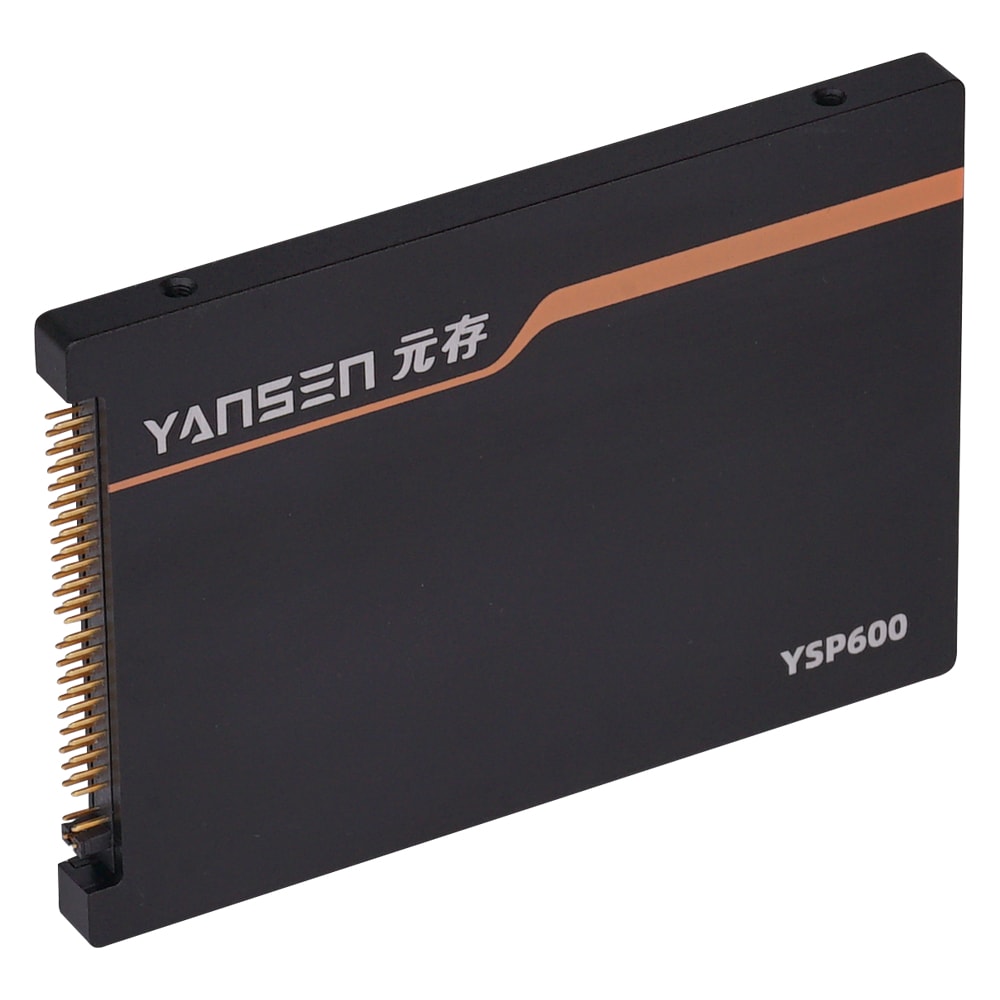

The YSP600E-X-XXX SSD is the 2.5" PATA drive based on an advanced industrial flash memory technology, it has a tough outer metal case, high reliability and anti-shock features that make it ideal to replace traditional 2.5" PATA HDD. In response to customer needs, Yansen launched PLP function option to prevent end user loose important data.
Features
Interface：PATA 44PIN，ATA-7（133MBps）
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loose Protection PLP
Specifications
| Product Model | YSP600E-X-XXX |
| Flash Type | SLC/MLC |
| Capacity | 8GB~128GB |
| Sequential Read（MAX） | Up to 125MB/s |
| Sequential Write（MAX） | Up to 100MB/s |
| 4K Random Read | 2500 IOPS |
| 4K Random Write | 500 IOPS |
| Operating Temperature | -20°C ~ 70°C, -40°C ~ 85°C |
| Storage Temperature | -55°C ~ +95°C |
| Humidity | 5%-95% RH non-condensing |
| Shock | 1500G/0.5ms |
| Vibration | 80Hz~2000Hz/20G |
| Operating Voltage | DC 5V±5% |
| Power Consumption（MAX） | 1.6W |
| Dimensions | L100mm*W69.8mm*H9.6mm ±0.15mm |
| MTBF | 2 million hours |
Order Information
| Model | Temperature | 8GB | 16GB | 32GB | 64GB |
YSP600E-S-XXX | -20°C ~ 75° C | YSP600E-S-008 (Enhance Series) | YSP600E-S-016 (Enhance Series) | YSP600E-S-032 (Enhance Series) | YSP600E-S-064 (Enhance Series) |
YSP600E-S-XXX | -40°C ~ 85°C | YSP600E-S-008 （Extreme Series） | YSP600E-S-016 （Extreme Series） | YSP600E-S-032 （Extreme Series） | YSP600E-S-064 （Extreme Series） |
| Model | Temperature | 16GB | 32GB | 64GB | 128GB |
YSP600E-M-XXX | -20°C ~ 75°C | YSP600E-M-016 (Enhance Series) | YSP600E-M-032 (Enhance Series) | YSP600E-M-064 (Enhance Series) | YSP600E-M-128 (Enhance Series) |
YSP600E-M-XXX | -40°C ~ 85°C | YSP600E-M-016 （Extreme Series） | YSP600E-M-032 （Extreme Series） | YSP600E-M-064 （Extreme Series） | YSP600E-M-128 （Extreme Series） |
Application
Embedded
Vehicle
Surveillance
Automation
AIOT
