Overview

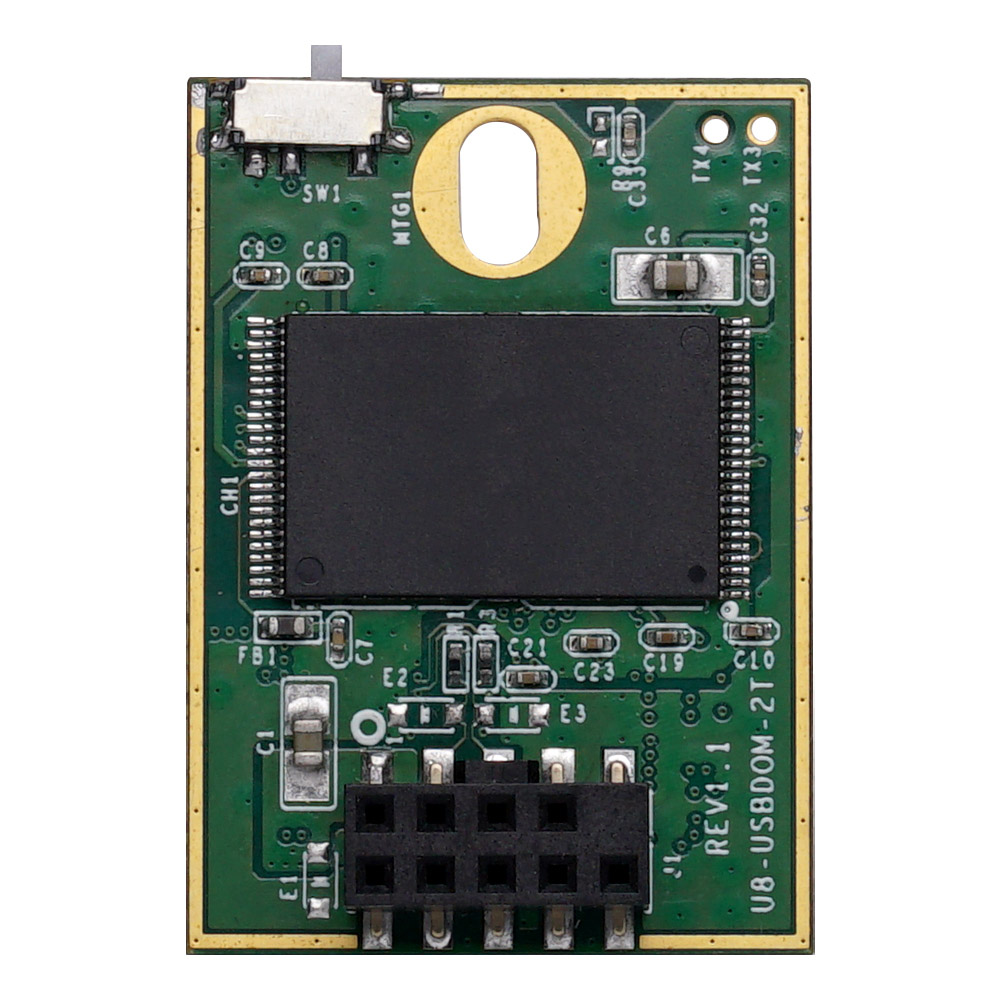

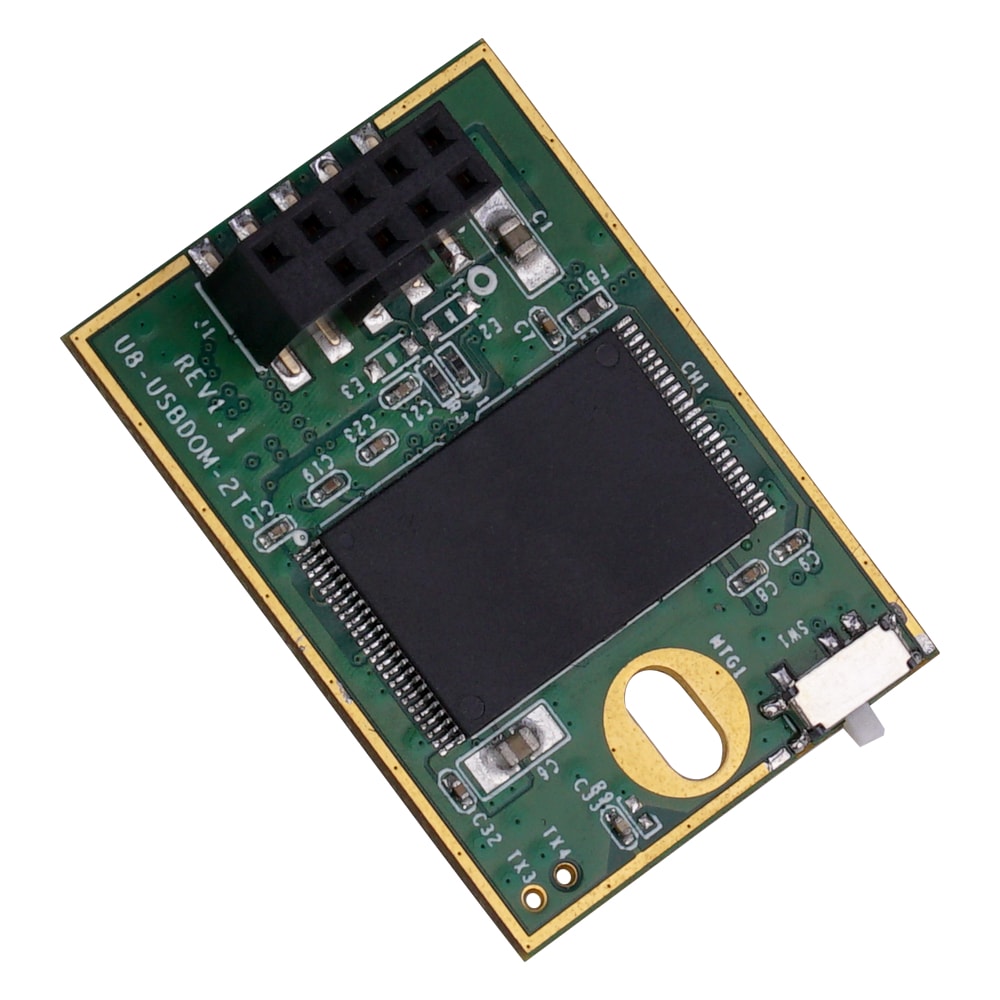

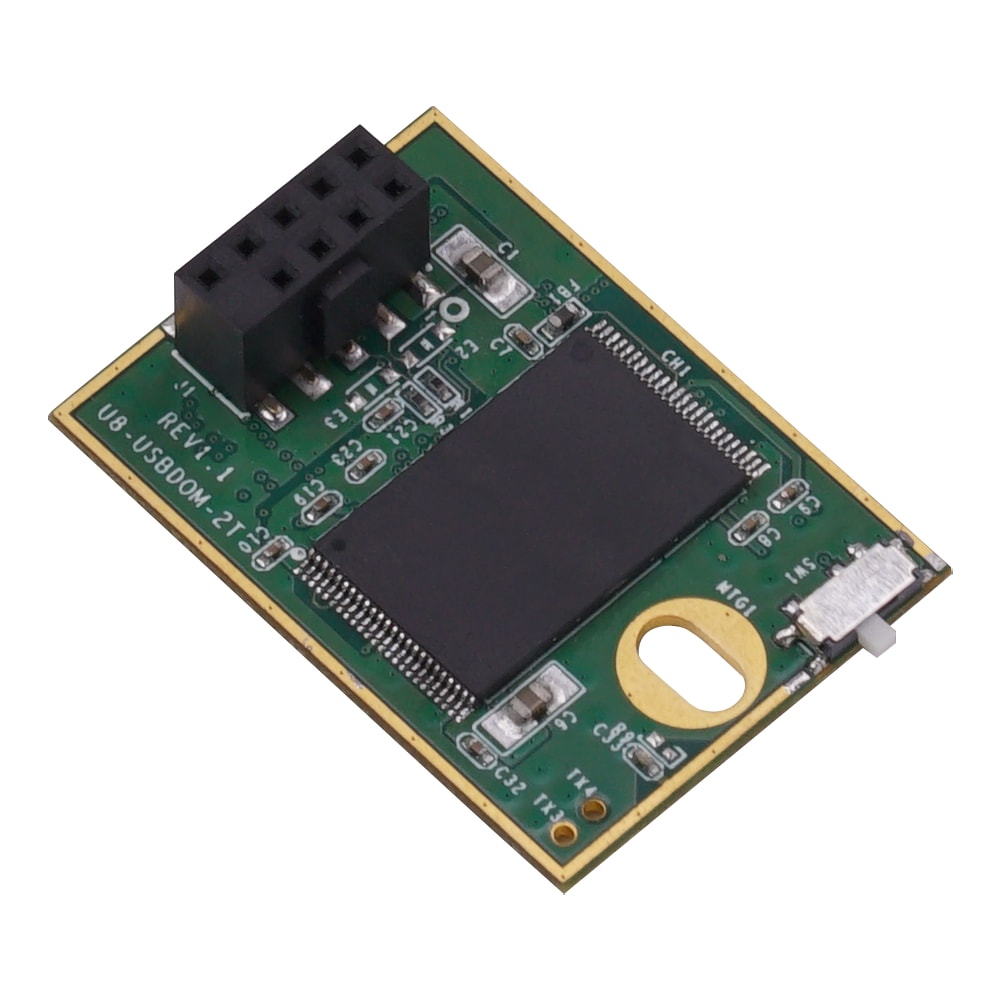

Yansen YSUDH-X-XXX USB DOM products provide high capacity USB flash memory storage that electrically complies with High-speed USB 2.0 interface & backward compatible with USB 1.1. The device features attractive small form factor and the connectivity over USB2.0 and the NAND flash architecture provide a faster data transmission.


Features


  • Interface:USB 2.0 9pin

  • Low-Density Parity-Check (LDPC) Code

  • Global Wear Leveling

  • Flash bad-block management

  • Flash Translation Layer: Page Mapping

  • Support S.M.A.R.T.

  • Support TRIM

Specifications

Product ModelYSUDH-X-XXX

Flash Type SLC/MLC
Capacity    8GB~64GB
Sequential Read Up to 35MB/s
Sequential Write Up to 25MB/s
4K Random Read 1700 IOPS
4K Random Write1100 IOPS
Operating Temperature  -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature -55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration80Hz~2000Hz/20G
Operating Voltage DC 5V±5%
Power Consumption 0.68W
Dimensions L36.9mm*W26.6mm*H9.6mm ±0.15mm
MTBF1 million hours


Order Information

ModelTemperature8GB16GB32GB-

YSUDH-S-XXX


-20°C ~ 75°C


YSUDH-S-008

(Enhance Series)

YSUDH-S-016

(Enhance Series)

YSUDH-S-032

(Enhance Series)

-

YSUDH-S-XXX


-40°C ~ 85°C


YSUDH-S-008

(Extreme Series)

YSUDH-S-016

(Extreme Series)

YSUDH-S-032

(Extreme Series)

-
ModelTemperature8GB16GB32GB64GB

YSUDH-M-XXX


-20°C ~ 75°C


YSUDH-M-008

(Enhance Series)

YSUDH-M-016

(Enhance Series)

YSUDH-M-032

(Enhance Series)

YSUDH-M-064

(Enhance Series)

YSUDH-M-XXX


-40°C ~ 85°C


YSUDH-M-008

(Extreme Series)

YSUDH-M-016

(Extreme Series)

YSUDH-M-032

(Extreme Series)

YSUDH-M-064

(Extreme Series)

Application

Embedded

Embedded

automation

Automation

AIoT

AIOT

Medical

Medical
