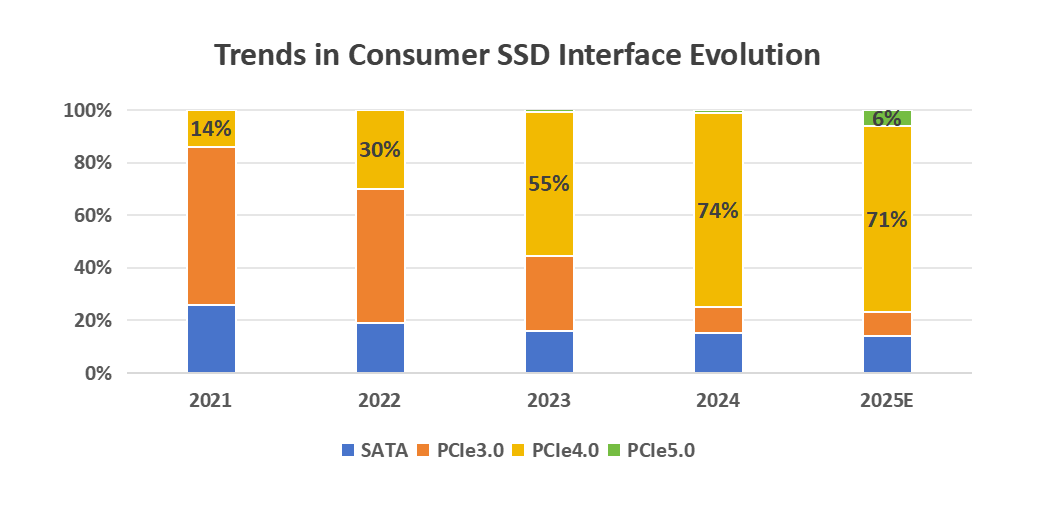

PCIe5.0 is now a familiar term in the tech world. The PCI bus, introduced in 1992, evolved into the PCIe standard in 2003, with its fifth-generation protocol (PCIe5.0) launching in 2019. However, despite rapid technological advancements, the commercialization of PCIe5.0 SSDs for consumers has lagged significantly—the first consumer-grade product only arrived in 2022, and as of 2024, its market penetration remains below 5%. In contrast, PCIe4.0 SSDs accounted for 55% of consumer SSD shipments in 2023, with projections reaching 71% by 2025, solidifying their mainstream dominance.

*Data Source：China Flash Market

Why has PCIe5.0 adoption in the consumer market fallen behind its technological evolution? While the delay between protocol release and product availability plays a role, deeper factors are at work: bottlenecks in hardware ecosystem synergy (NAND Flash, controllers, and platforms), thermal design challenges impacting user experience, and the imbalance between cost and performance gains—all of which create high barriers to mass-market acceptance. To dissect this phenomenon, CFM Flash Market conducted comprehensive performance tracking of available PCIe5.0 SSDs, aiming to identify pathways for the next-gen storage standard’s breakthrough.

Compared to PCIe4.0, PCIe5.0 delivers a doubling of interface bandwidth and transfer rates—single-lane speeds jump from 16 GT/s to 32 GT/s, while x4 lane bandwidth surges from 7+ GB/s to 14+ GB/s. In theory, PCIe5.0 SSDs should offer overwhelming sequential read/write advantages.

Yet, SSD controllers typically feature 4- or 8-channel designs. To fully utilize PCIe5.0 x4’s theoretical 16 GB/s bandwidth, NAND Flash I/O speeds must reach 2400 MT/s. Multi-channel architectures are thus critical to prevent NAND from becoming a bottleneck. Leading manufacturers have achieved this via 200+ layer 3D TLC NAND, including Samsung’s V8 NAND, Kioxia’s BiCS8, SK Hynix’s 238L NAND, Micron’s 232L/296L NAND, and YMTC’s Xtacking 4.0 TLC—all offering 2400–3600 MT/s I/O speeds.

Meanwhile, SSD controllers have migrated to 5nm/6nm/7nm process nodes, enhancing efficiency and ensuring synchronized upgrades in interface and NAND performance.

Early PCIe5.0 SSDs faced severe thermal throttling, degrading performance and risking hardware damage. Advanced 5nm/6nm/7nm controllers (e.g., SM2508 on 6nm, reducing power draw by 30%) now cap total SSD power at under 7W.

Thermal solutions have also evolved—from bulky heatsinks or extreme liquid cooling to detachable composite heat spreaders and high-conductivity materials. Many PCIe .0 SSDs now feature removable heatsinks, while DRAM-less designs (e.g., Kioxia’s VD10 series) further cut power, enabling simpler thermal pad solutions.

The primary barrier to PCIe5.0 SSD adoption remains cost-performance imbalance.

While sequential speeds double from PCIe4.0 to 5.0, 4K random I/O gains are only ~30%—translating to marginal improvements in game loads or system responsiveness (under 1 second). Most daily tasks (app launches, photo transfers, boot times) rely on random I/O, where the difference is negligible. Yet, PCIe5.0 SSDs command 30–70% price premiums over PCIe4.0 models.

For price-sensitive mainstream users, upgrading offers little value. Only professionals (e.g., local AI training or 4K/8K video editors) benefit meaningfully. However, DRAM-less controllers (e.g., Phison’s PS5031-E31T in Kioxia’s VD10 or Crucial’s P510) and future QLC-based designs could narrow the price gap.

Though consumer PCIe5.0 SSDs remain niche, advancements in NAND I/O speeds, low-power controllers, and thermal designs are paving the way for high-performance, cost-optimized solutions. As the ecosystem matures—with more controller options and platform support—PCIe5.0 SSDs will eventually achieve the trifecta of speed, efficiency, and affordability, unlocking mass-market adoption.
