Overview

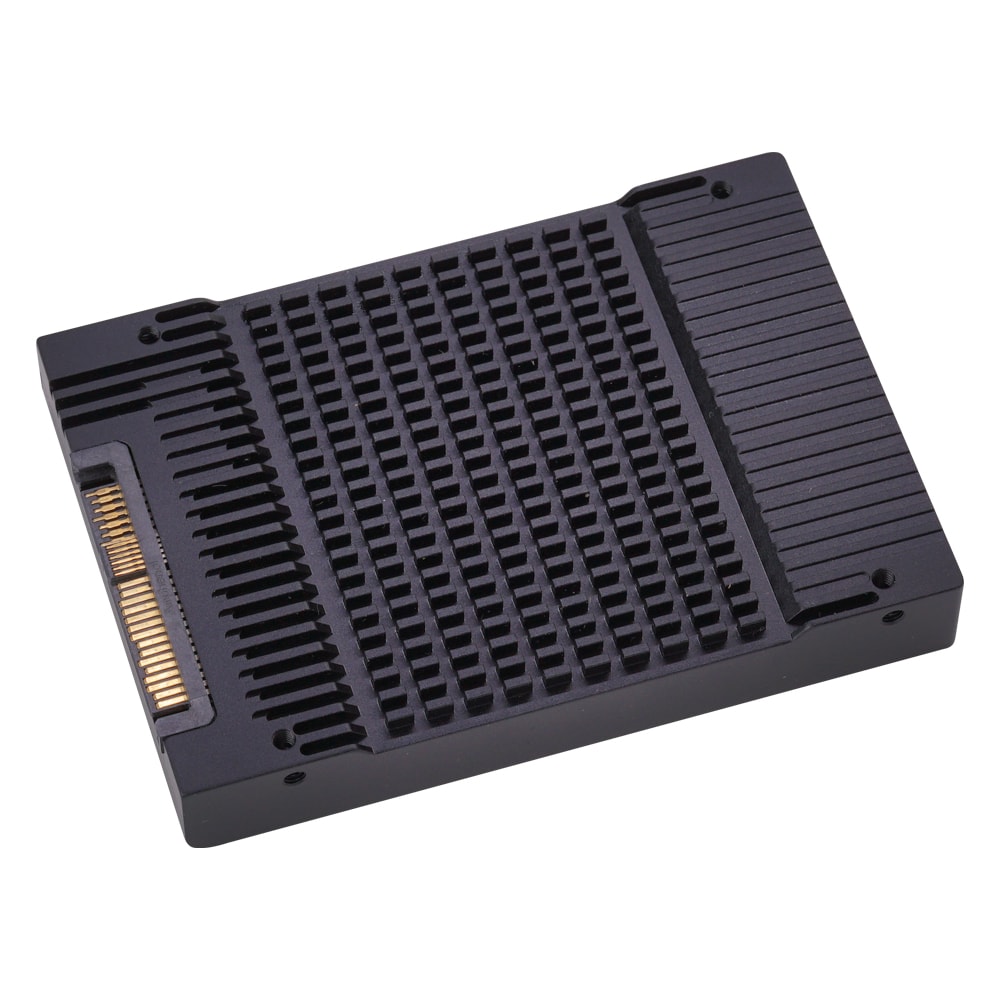

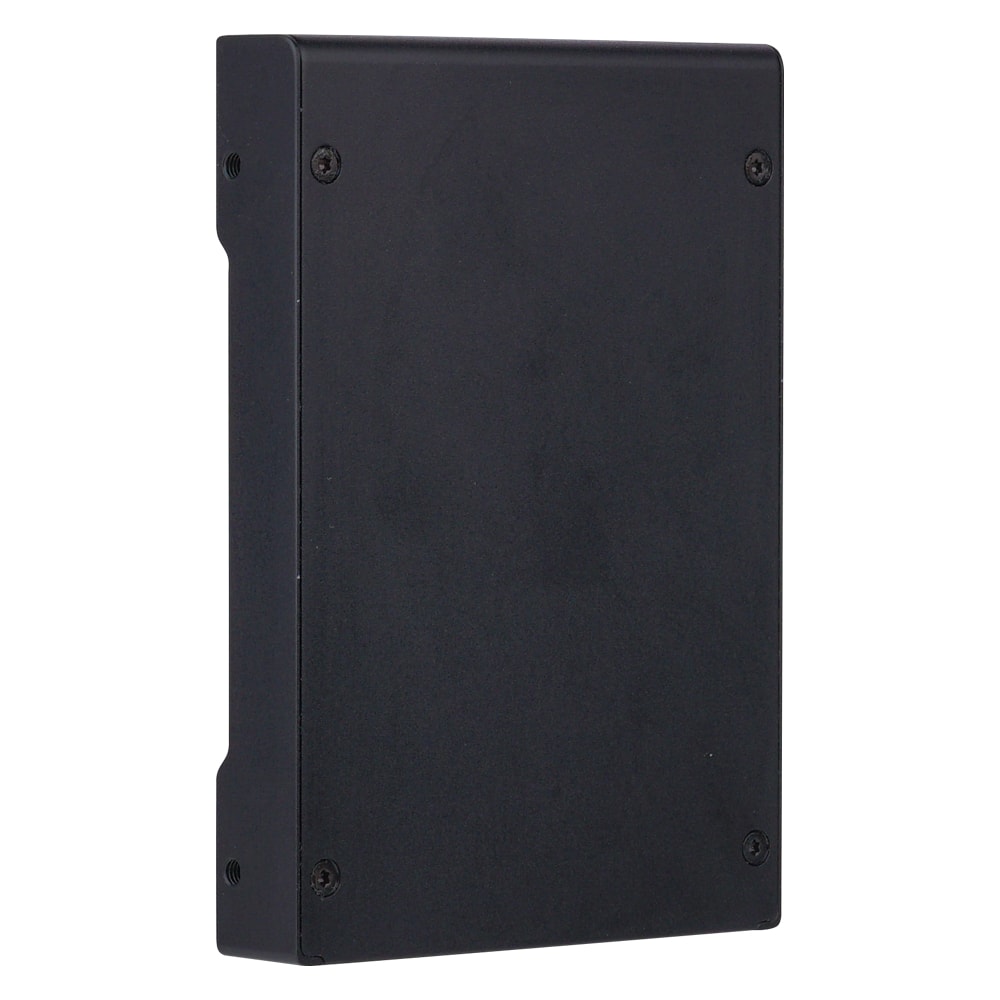

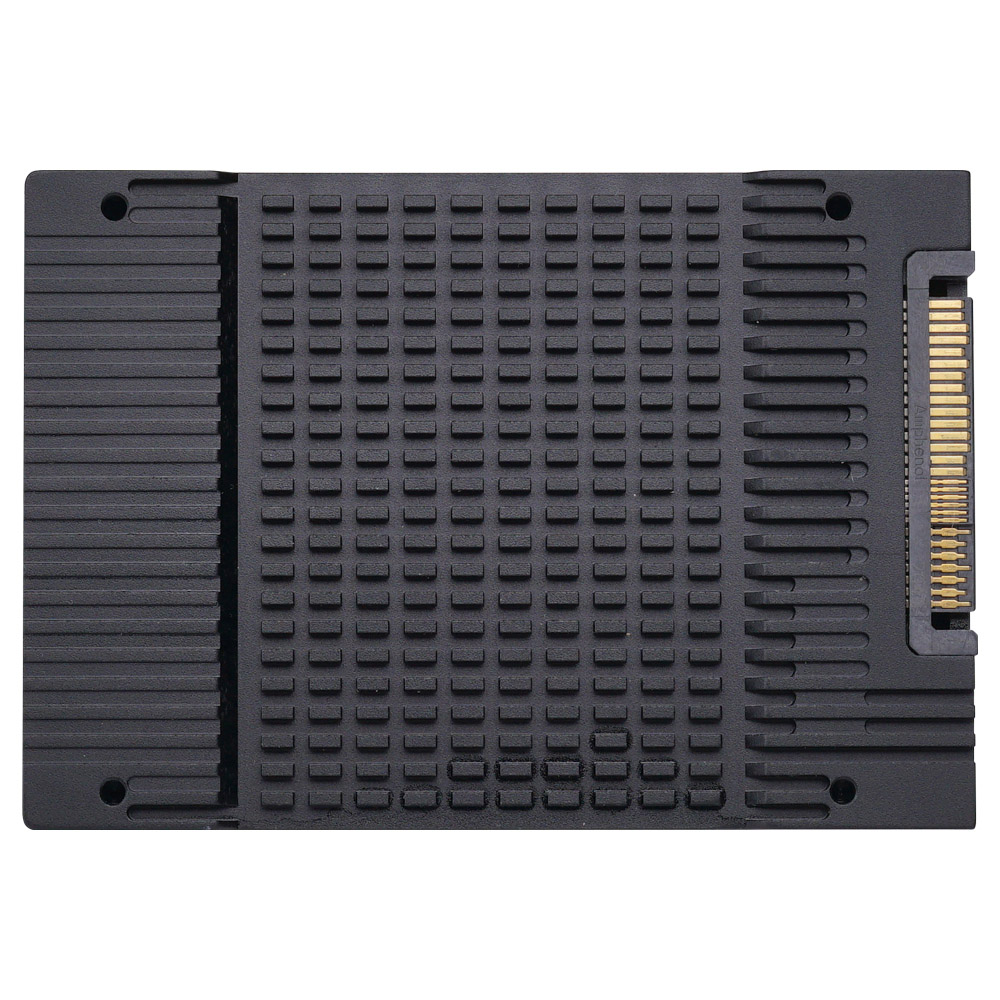

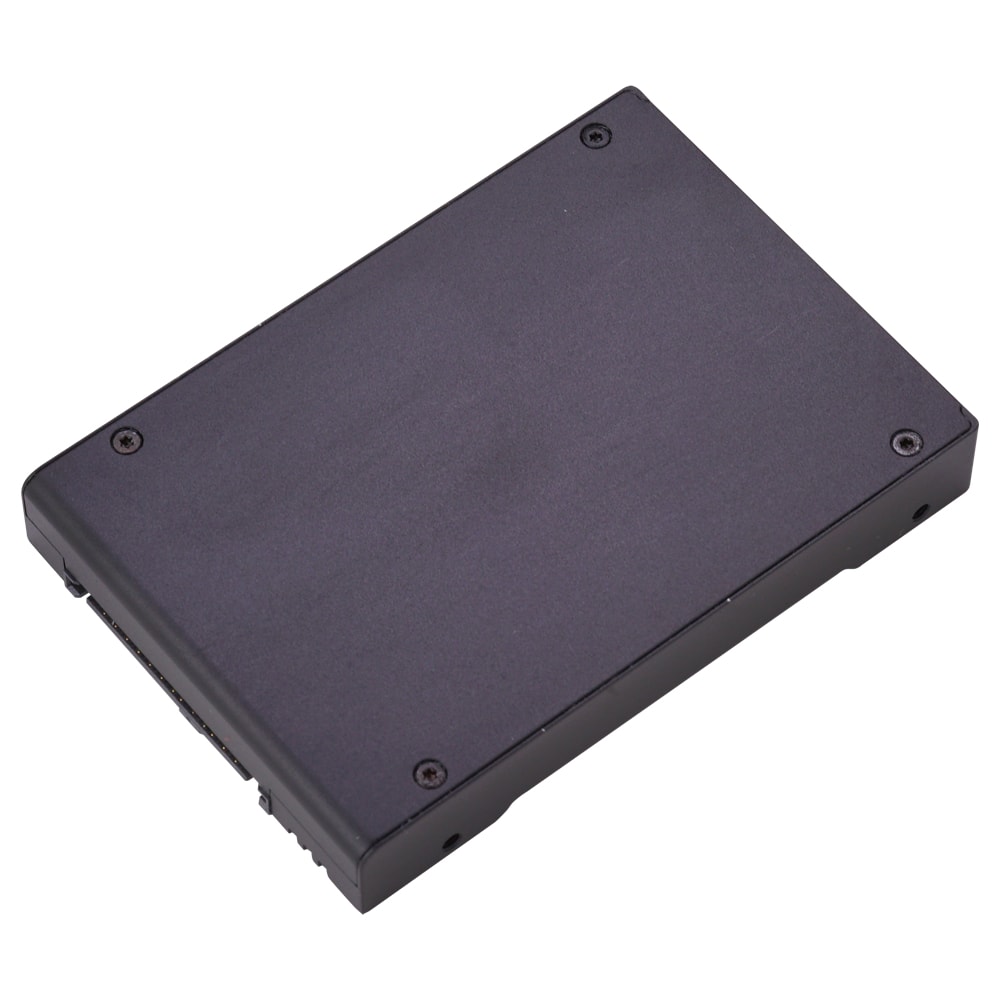

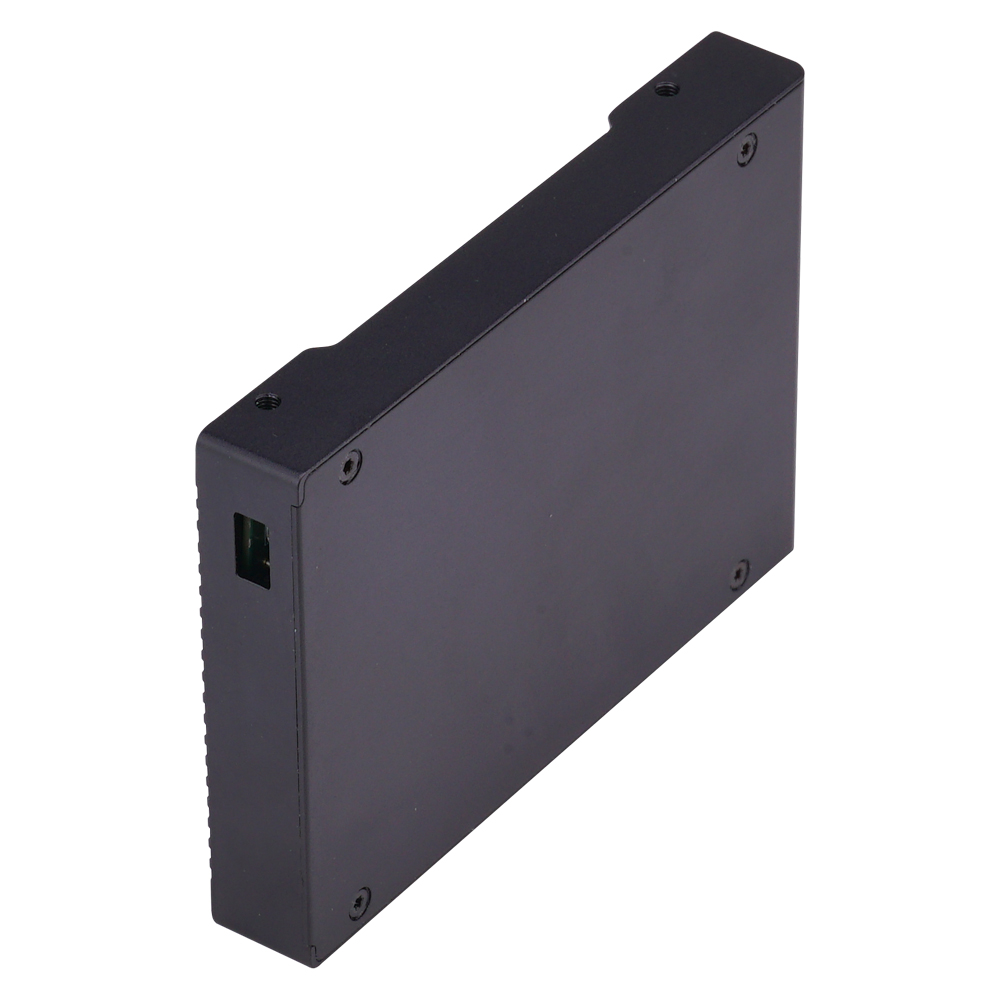

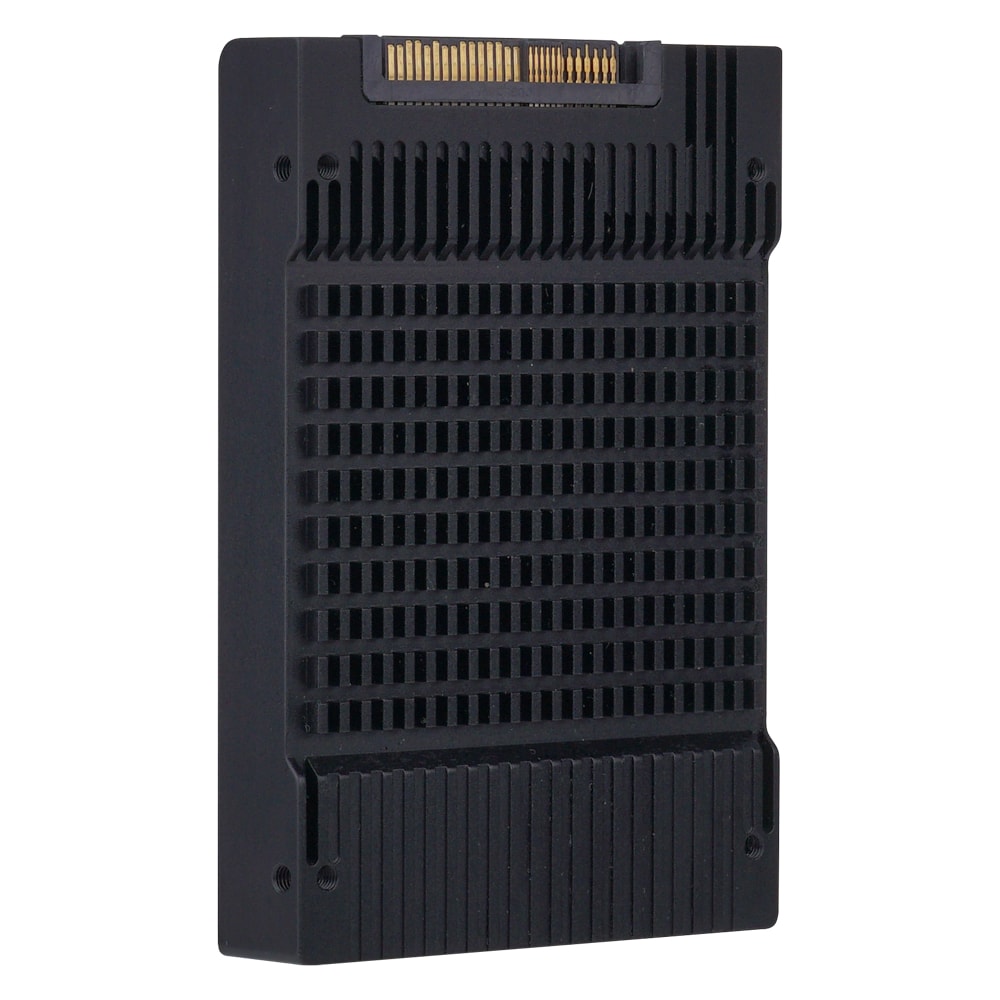

The YSU2-XXX PCIe U.2 3.8TB SSD by Yansen has been designed to deliver superior performance ensuring reliability to fulfill the diverse application requirements.
The enhanced capacity of 3.8TB enables the users to store extensive data in one compact PCIe SSD. It entails the computational storage technology to enhance the data processing speed by increasing the efficiency in data reading. By decreasing excessive data movement the computational storage technology also helps in managing the data locally.
To ensure the highest level of expertise in managing a large amount of data, Yansen YSU2-XXX PCIe U.2 SSD drive optimizes the hardware and firmware. The focus is to provide ultra-high performance with extended capacity and enhanced reliability.
Features
Interface：PCIe Gen3 x 4Lane
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Power Loose Protection PLP
Specifications
| Product Model | YSU2-X-XXX |
| Flash Type | TLC |
| Capacity | 800GB~3.84TB |
| Sequential Read | Up to 3000MB/s |
| Sequential Write | Up to 1700MB/s |
| 4K Random Read | 400000 IOPS |
| 4K Random Write | 90000 IOPS |
| Operating Temperature | 0°C ~ 70°C |
| Storage Temperature | -20°C ~ +75°C |
| Humidity | 5%-95% RH non-condensing |
| Shock | 1500G/0.5ms |
| Vibration | 80Hz~2000Hz/20G |
| Operating Voltage | DC 12V±7% |
| Power Consumption（MAX） | 11W |
| Dimensions | L100.2mm*W69.85mm*H15mm ±0.15mm |
| MTBF | 2 million hours |
Order Information
| Model | Temperature | 800GB | 960GB | 1.6TB | 1.92TB | 3.2TB | 3.84TB |
| YSU2-XXX | 0°C ~ 70°C | YSU2-800 | YSU2-960 | YSU2-1.6T | YSU2-1.92T | YSU2-3.2T | YSU2-3.84T |
Application
Embedded
Server
