Introduction of YANSEN Industrial PATA Solid State Drive

Views: 125 Author: Site Editor Publish Time: Origin: Site

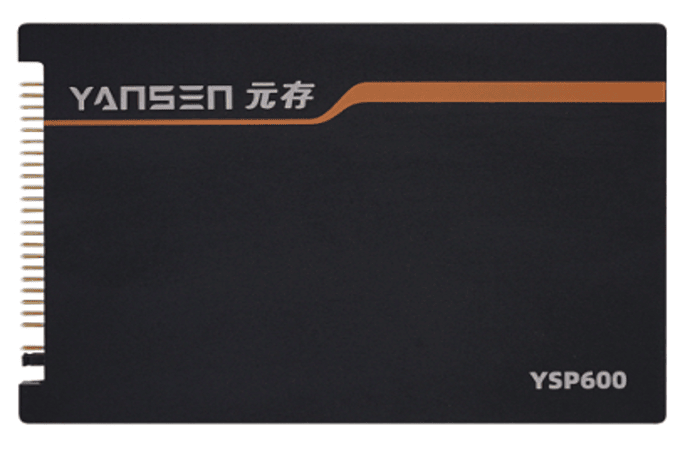

The industrial-grade PATA solid-state hard drive YSP600 launched by YANSEN can adapt to different UDMA or PIO modes, and supports NCQ queue commands and Trim functions. It applies industrial-grade SSD main control and SLC/MLC chip, with capacity ranging from 8GB to 128GB. It uses multiple large-capacity Tantalum Capacitors and sophisticated TI power failure detection IC to form a power failure data protection circuit, and uses 15u gold-plated PATA connectors that are resistant to oxidation and plugged over ten thousand times to improve stability and security of data transmission in harsh environments.

YANSEN

YANSEN industrial grade PATA YSP600 adopts CNC fully enclosed solid metal shell to provide a safe environment in case of earthquake and impact resistance. The screws stabilize the PCB and the shell, improve the shock resistance of the solid state drive, and prevent the hard drive from falling off during operation. In terms of interface, YANSEN P600 interface adopts ultra-wide temperature pin plug-in IDE connector, which is adapting to various PATA (IDE) interface application equipment and the gospel of some old machines.

 YANSEN

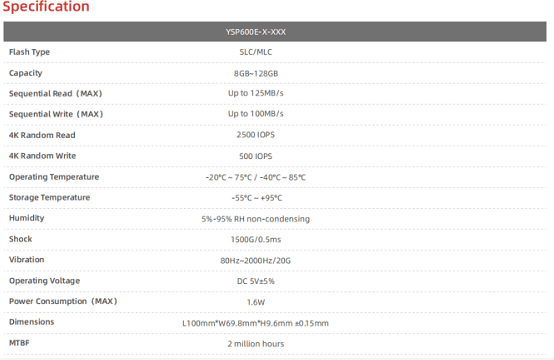

Industrial-grade PATA solid state drives are divided into two series: Enhance -20°C ~ 75°C and Extreme -40°C ~ 85°C, which can meet the needs of continuous reading and writing and high stability in different environments. This series of products support static and dynamic wear balance algorithms, support garbage collection mechanism and reserved space mechanism, power management, intelligent management technology, support full-speed command queue function, Trim command, support error checking, correction mechanism, and support power failure protection.



Appendix A:


Industrial grade PATA YSP600 is widely used in industrial automation, rail transit and so on. YANSEN has complete test process, highly simulates and restores wide-temperature application scenarios, and continues to work hard to create more application scenarios!

For more product information and fields, or any inquire about the machine adaptation, please visit www.kingspec.com for details.



×
